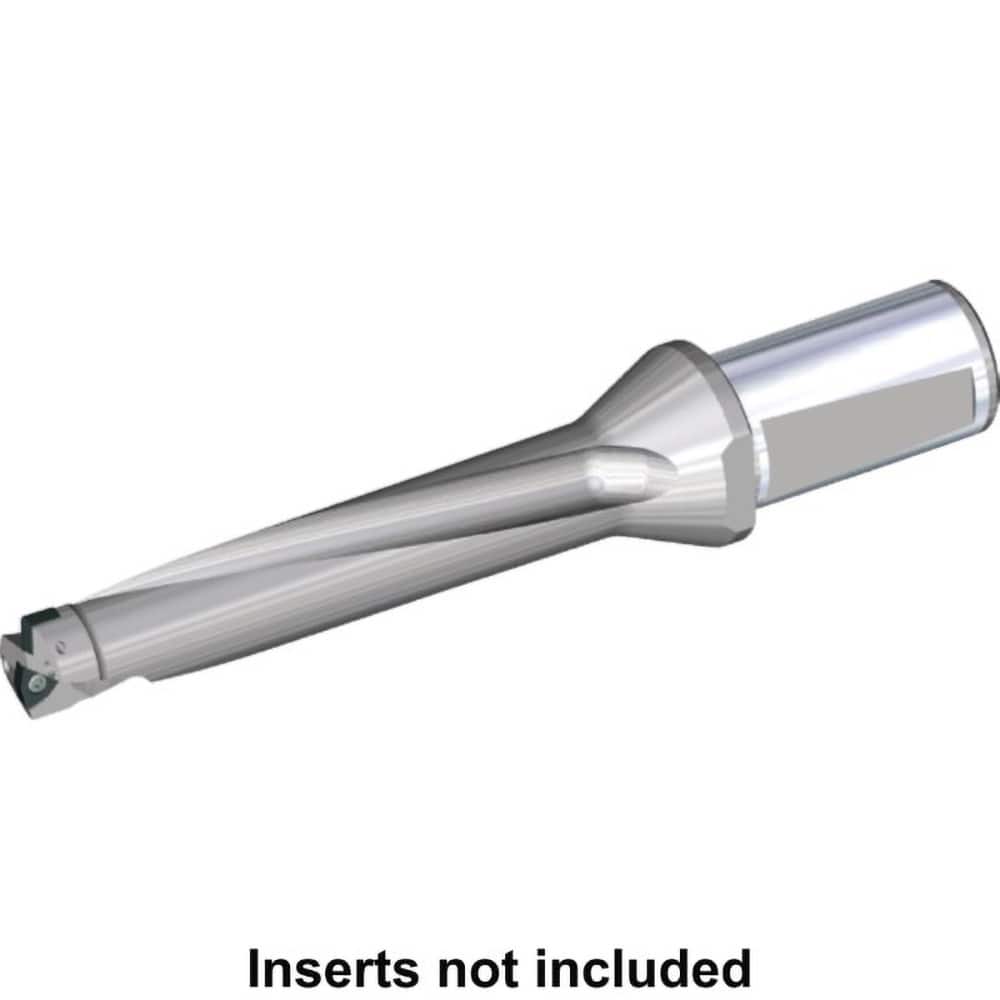

Indexable Insert Drills; Drill Style: DFSP; Maximum Drill Diameter (mm): 16.00; Drill Diameter (Decimal Inch): 0.6300; Maximum Drill Diameter (Decimal Inch): 0.6300; Drill Diameter (mm): 16.00; Maximum Drill Depth (Decimal Inch): 3.1500; Maximum Drill Dep
Item #: 13200746
Brand: Kennametal
Model #: 6075793
Product Specifications
| Drill Style | DFSP |
| Maximum Drill Diameter (mm) | 16.00 |
| Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Drill Diameter (mm) | 16.00 |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 20.00 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SPGX0502..; DFTX202.. |
| Drill Depth by Diameter Ratio | 5xD |
| Series | Drill Fix |
| Flute Length (Decimal Inch) | 3.3860 |
| Flute Length (mm) | 86.00 |
| Body Length (Decimal Inch) | 4.0940 |
| Shank Length (Decimal Inch) | 4.0940 |
| Shank Length (mm) | 45.00 |
| Overall Length/Projection (Decimal Inch) | 5.8660 |
| Overall Length/Projection (mm) | 149.00 |
| Insert Compatibility (Outside or Peripheral) | SPGX0502.. |
| Insert Compatibility | SPGX0502..; DFTX202.. |
| MSC/Manufacturer Number | DFSP160R5WD20M |
| Coolant Through | Yes |
