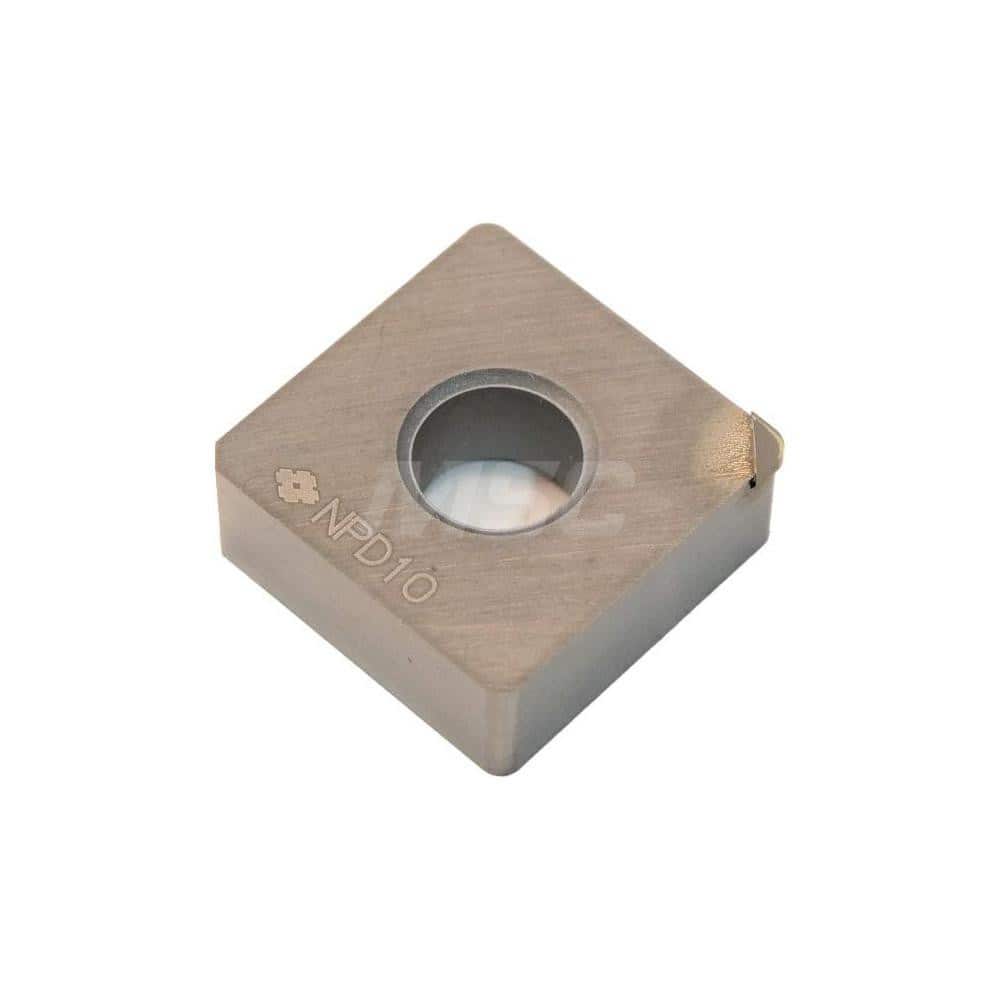

Turning Insert: SNMA433RH NPD10, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0709″ Long, 0.0472″ Corner Radius, 90.0 ° N/A Square, Series NPD10
Item #: 13108238
Brand: Sumitomo
Model #: 332T018
Product Specifications
| Insert Style | SNMA |
| Insert Shape Code | S |
| Insert Size Code | 433 |
| Insert Shape | Square |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | NPD10 |
| Hole Diameter (Decimal Inch) | 5.1600 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | NPD10 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.0709 |
| Insert Length (mm) | 1.80 |
| Iso Code | SNMA120412RH |
| Manufacturers Catalog Number | SNMA433RH-NPD10 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
