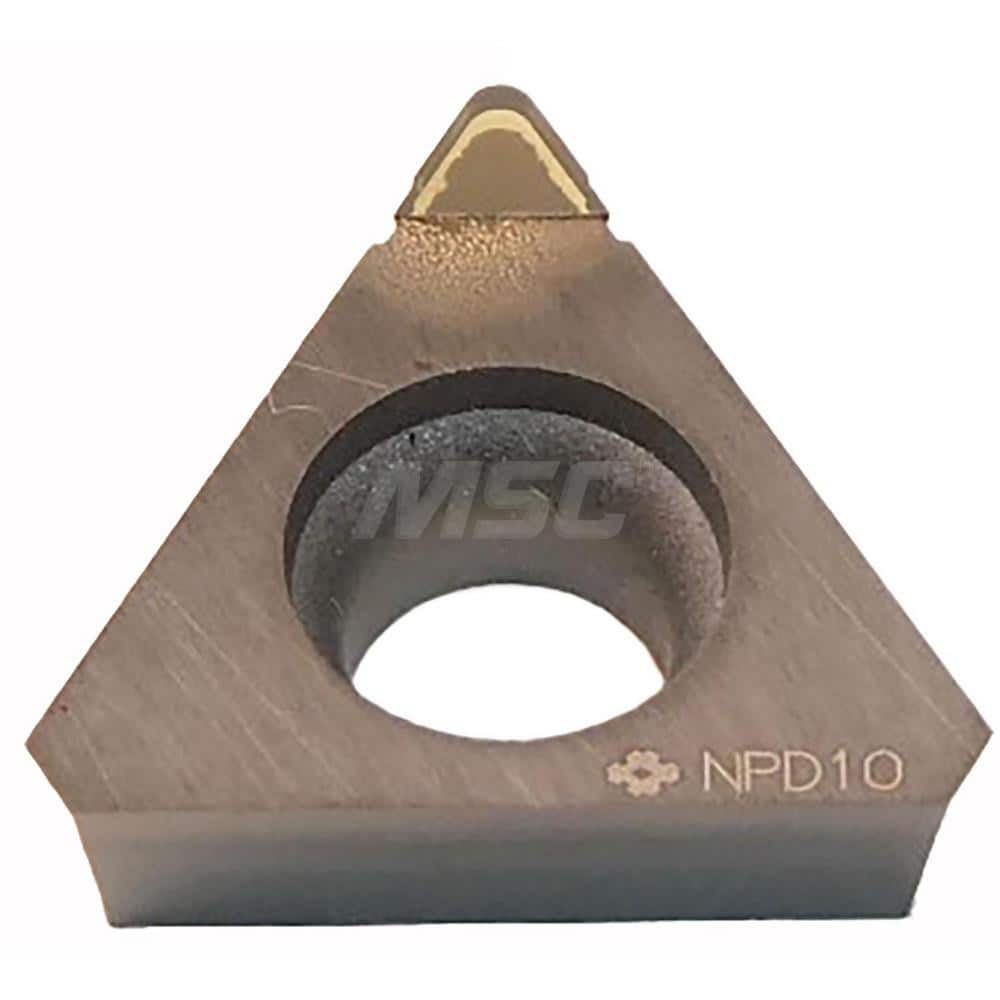

Turning Insert: TPMA330.5RH NPD10, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0906″ Long, 0.0079″ Corner Radius, 60.0 ° N/A Triangle, Series NPD10
Item #: 13108139
Brand: Sumitomo
Model #: 332T024
Product Specifications
| Insert Style | TPMA |
| Insert Shape Code | T |
| Insert Size Code | 330.5 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | NPD10 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | NPD10 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0906 |
| Insert Length (mm) | 2.30 |
| Iso Code | TPMW160402RH |
| Manufacturers Catalog Number | TPMA330.5RH-NPD10 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
