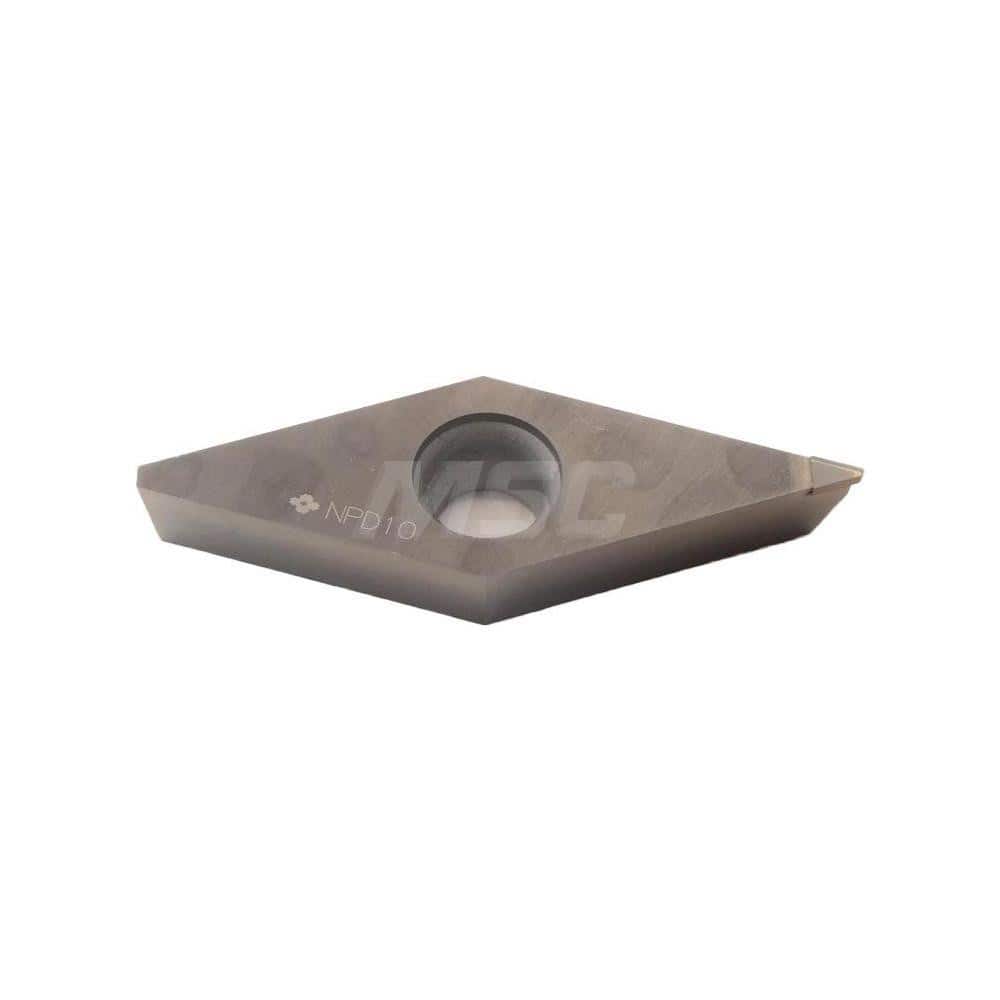

Turning Insert: VCMA221RH NPD10, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0709″ Long, 0.0157″ Corner Radius, 35.0 ° N/A Diamond, Series NPD10
Item #: 13107925
Brand: Sumitomo
Model #: 332T031
Product Specifications
| Insert Style | VCMA |
| Insert Shape Code | V |
| Insert Size Code | 221 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | NPD10 |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | NPD10 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0709 |
| Insert Length (mm) | 1.80 |
| Iso Code | VCMW110304RH |
| Manufacturers Catalog Number | VCMA221RH-NPD10 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
