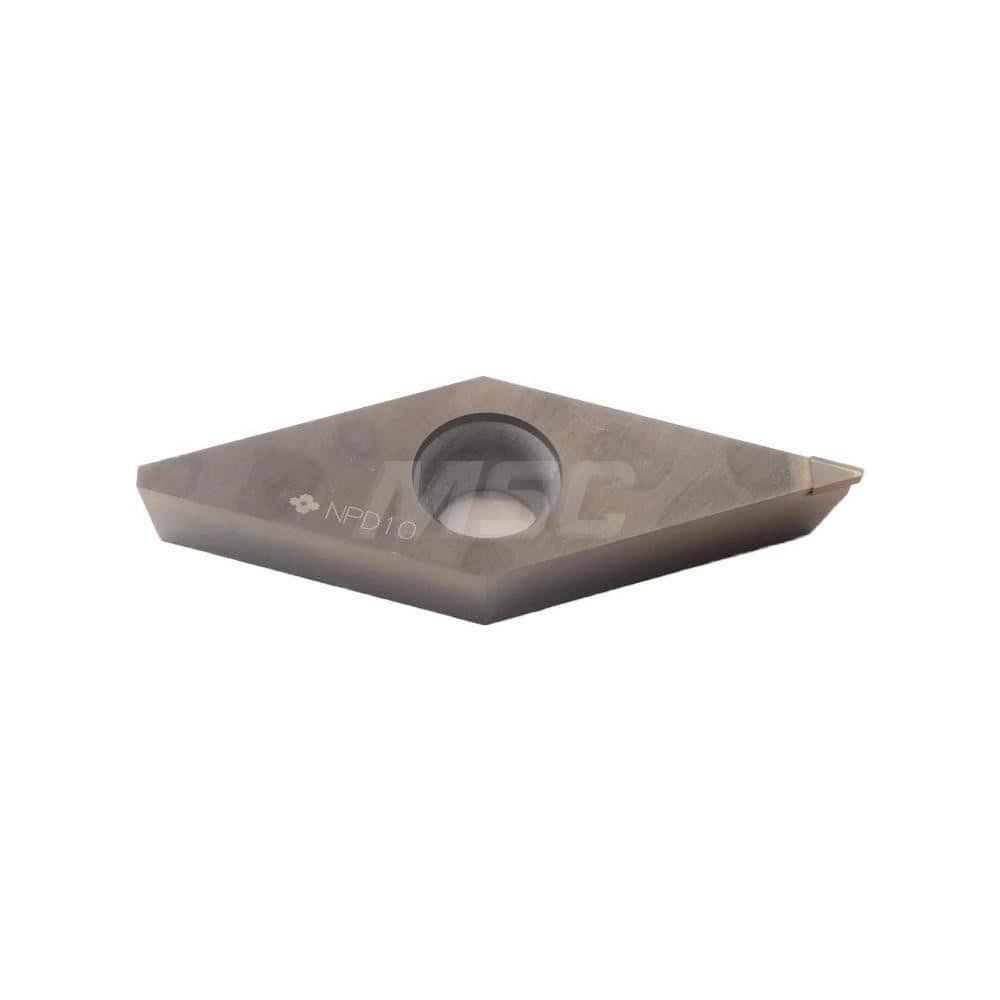

Turning Insert: VCMA330.5RH NPD10, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0866″ Long, 0.0079″ Corner Radius, 35.0 ° N/A Diamond, Series NPD10
Item #: 13107883
Brand: Sumitomo
Model #: 332T032
Product Specifications
| Insert Style | VCMA |
| Insert Shape Code | V |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | NPD10 |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 7 |
| Series | NPD10 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.0866 |
| Insert Length (mm) | 2.20 |
| Iso Code | VCMW160402RH |
| Manufacturers Catalog Number | VCMA330.5RH-NPD10 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
