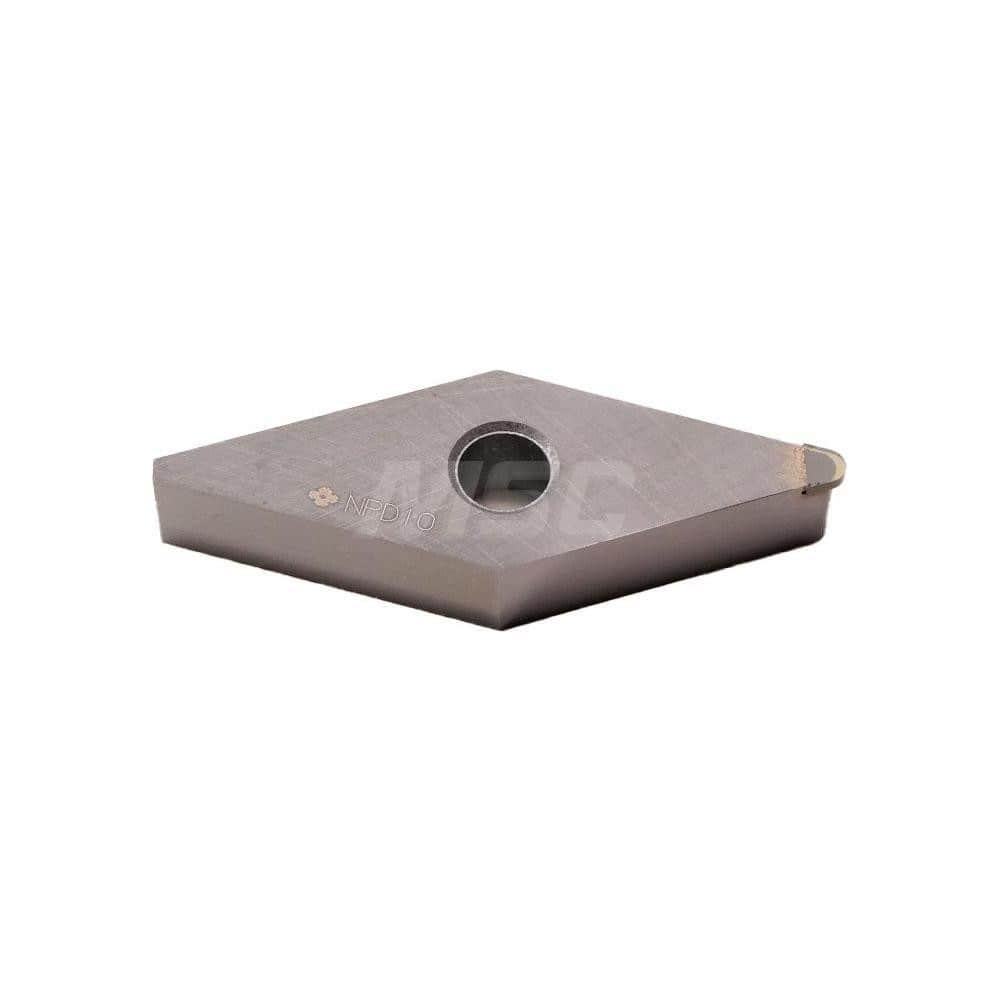

Turning Insert: VNMA333RH NPD10, Polycrystalline Diamond Uncoated Finish, Neutral, 0.0669″ Long, 0.0472″ Corner Radius, 35.0 ° N/A Diamond, Series NPD10
Item #: 13107636
Brand: Sumitomo
Model #: 332T037
Product Specifications
| Insert Style | VNMA |
| Insert Shape Code | V |
| Insert Size Code | 333 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Polycrystalline Diamond |
| Manufacturer Grade | NPD10 |
| Hole Diameter (Decimal Inch) | 3.8100 |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Series | NPD10 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.0669 |
| Insert Length (mm) | 1.70 |
| Iso Code | VNMA160412RH |
| Manufacturers Catalog Number | VNMA333RH-NPD10 |
| Chip Breaker | A |
| Coating/Finish | Uncoated |
