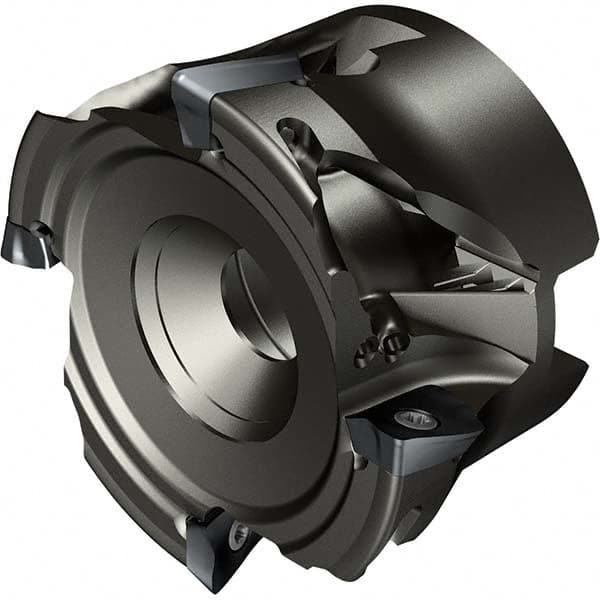

Indexable Square-Shoulder Face Mill: R390-050Q22LW-11M, 22.0000″ Arbor Hole Dia, Uses 4, R390-11 Inserts, Through Coolant, Series CoroMill 390
Item #: 13044193
Brand: Sandvik Coromant
Model #: 7503707
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Inch) | 22 |
| Arbor Hole Diameter (Decimal Inch) | 22.0000 |
| Compatible Insert Size Code | R390-11 |
| Cutter Style | R390 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Overall Height (Mm - 5 Decimals) | 30.00 |
| Pitch Type | Close |
| Maximum RPM | 10000 |
| Toolholder Material | Titanium |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
