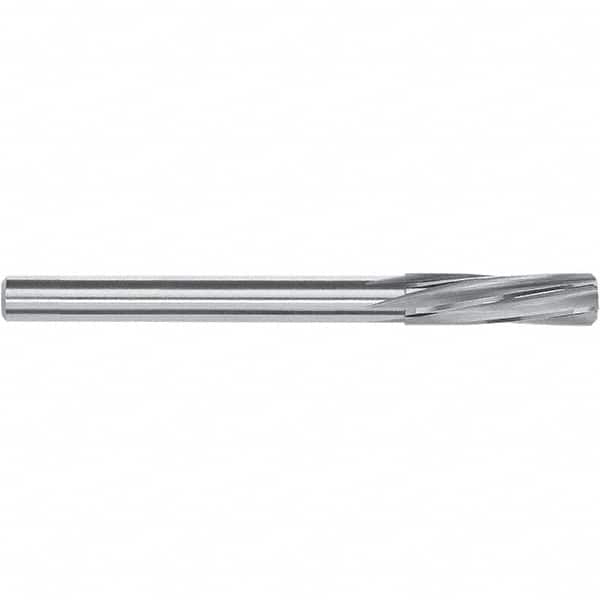

Magafor - 5.2mm Solid Carbide Chucking Reamer - Spiral Flute, 4mm Straight Shank, 22mm Flute Length, 63mm OAL
Item #: 12619896
Brand: Magafor
Model #: 88867005200
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Spiral flute reamers are used in blind and through-hole operations. They are used to bridge interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (mm) | 5.20 |
| Reamer Diameter (Decimal Inch) | 0.2047 |
| Reamer Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Spiral |
| Overall Length (mm) | 63.00 |
| Overall Length (Decimal Inch) | 2.4800 |
| Flute Length (mm) | 22.00 |
| Flute Length (Decimal Inch) | 0.8660 |
| Maximum Shank Diameter (mm) | 4.00 |
| Maximum Shank Diameter (Decimal Inch) | 0.1575 |
| Spiral Direction | Right Hand |
| Cutting Direction | Right Hand |
| Reamer Diameter Tolerance (mm) | H7 (Hole) |
| Through Coolant | Yes |
| Additional Information | DIN 8089-C; For Blind Hole |
