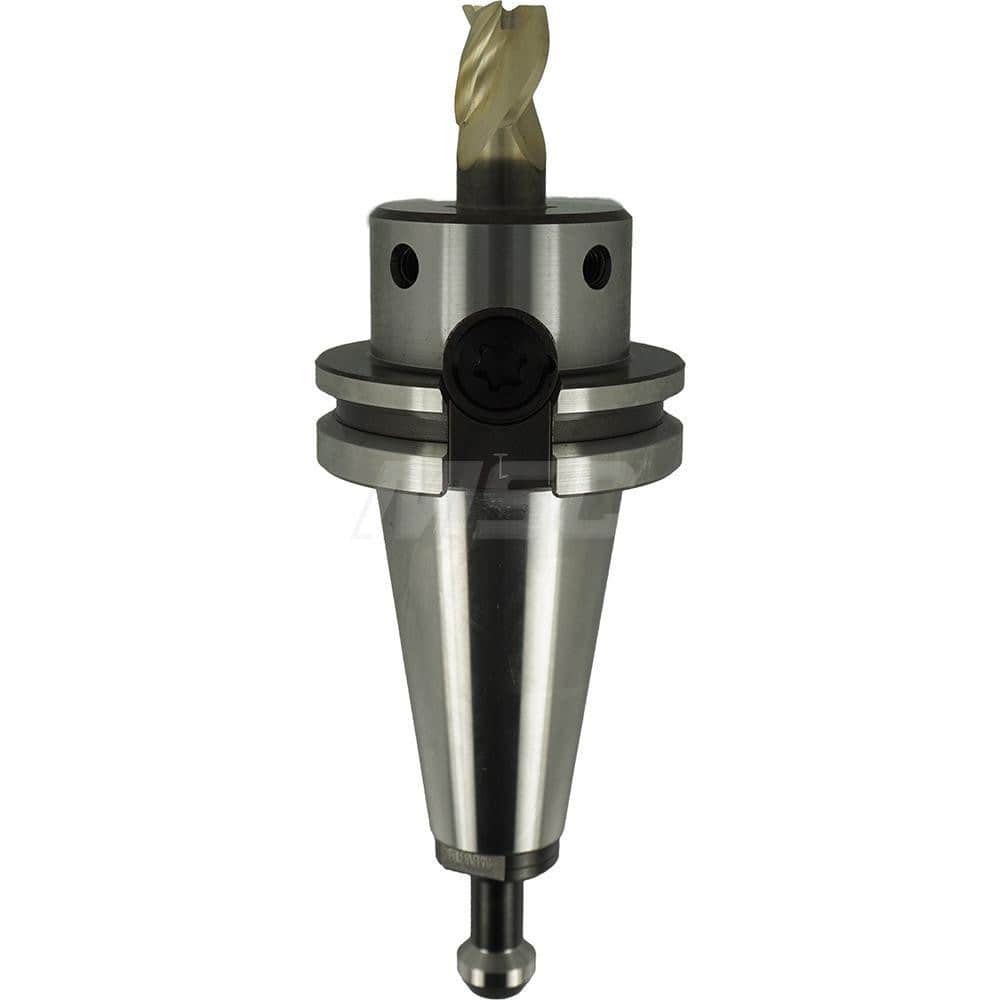

ST Series CAT40 Assembly & Interactive Dashboard: Includes Holder, Retention Knob & Solid Carbide End Mill ″5/8″ Dia, 3/4″ LOC, 3 Flutes, 0.030″ Corner Radius, ZrN″
Item #: 12503074
Brand: Accupro
Model #: 9078391/1055428
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 3/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| Length Type | Stub |
| Flute Type | Spiral |
| Helix Angle | 37 |
| Shank Type | Smart-Weldon |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Minimum Helix Angle | 37.00 |
| Maximum Helix Angle | 37.00 |
| Corner Radius Tolerance | +0.00000 to -0.00100 |
| Mill Diameter Tolerance | +0.000000 to -0.001000 |
| Shank Diameter Tolerance | h6 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Ultra Fine Micrograin |
| Series | ST |
| Additional Information | Includes CAT40 Smart Adapter Body & Screw; Mas 45D Retention Knob |
| TIR Maximum (Decimal Inch) | 0.0004 |
| TIR Maximum (mm) | 0.01 |
| For Use With. | Haas, Bridgeport, Sharp, Miyano, Fryer & OKK Machine |
| Single Or Double End | Single |
| Coating/Finish | ZrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
