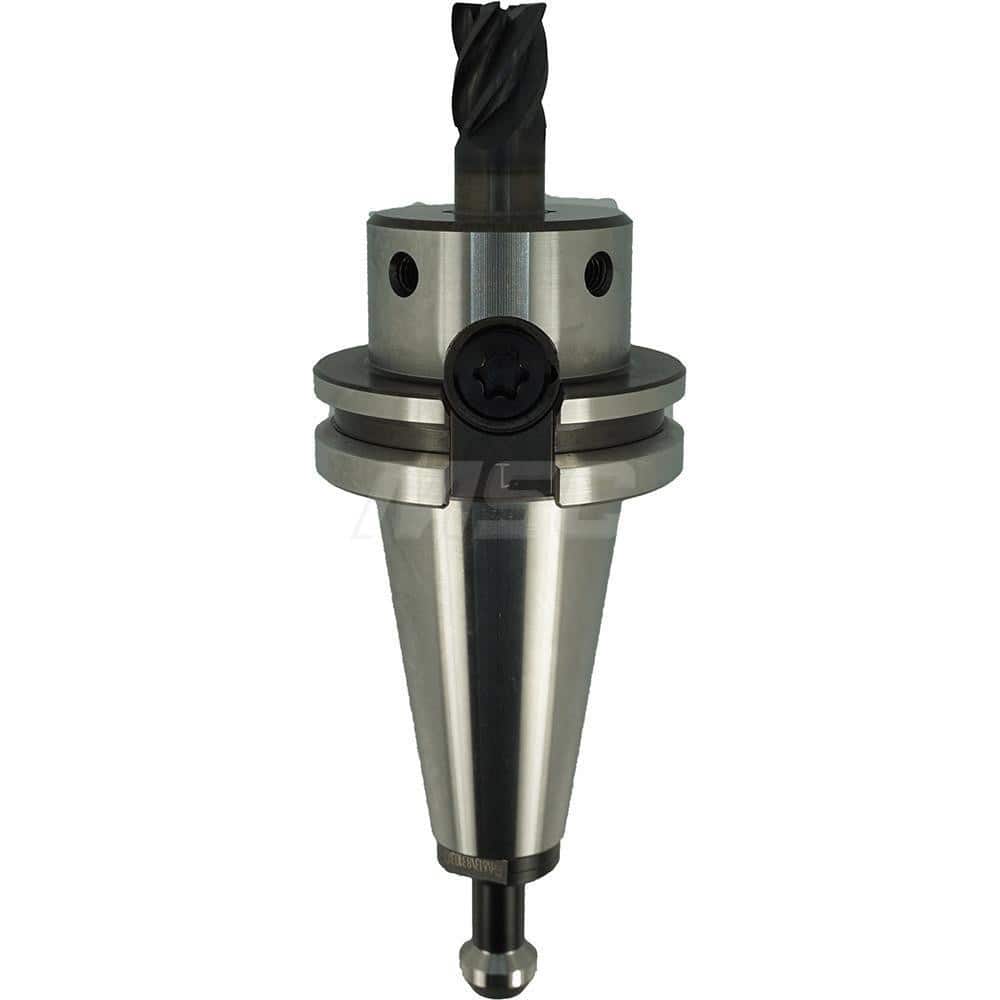

ST Series CAT40 Assembly & Interactive Dashboard: Includes Holder, Retention Knob & Solid Carbide End Mill ″5/8″ Dia, 3/4″ LOC, 5 Flutes, 0.030″ Corner Radius, AlTiCrN″
Item #: 12502704
Brand: Accupro
Model #: 9078397/1055428
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 1-3/4 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| Length Type | Stub |
| Flute Type | Spiral |
| Shank Type | Smart-Weldon |
| Centercutting | Yes |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Ultra Fine Micrograin |
| Series | ST |
| For Use With. | Haas, Bridgeport, Sharp, Miyano, Fryer & OKK Machine |
| Coating/Finish | AlTiCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.7500 |
