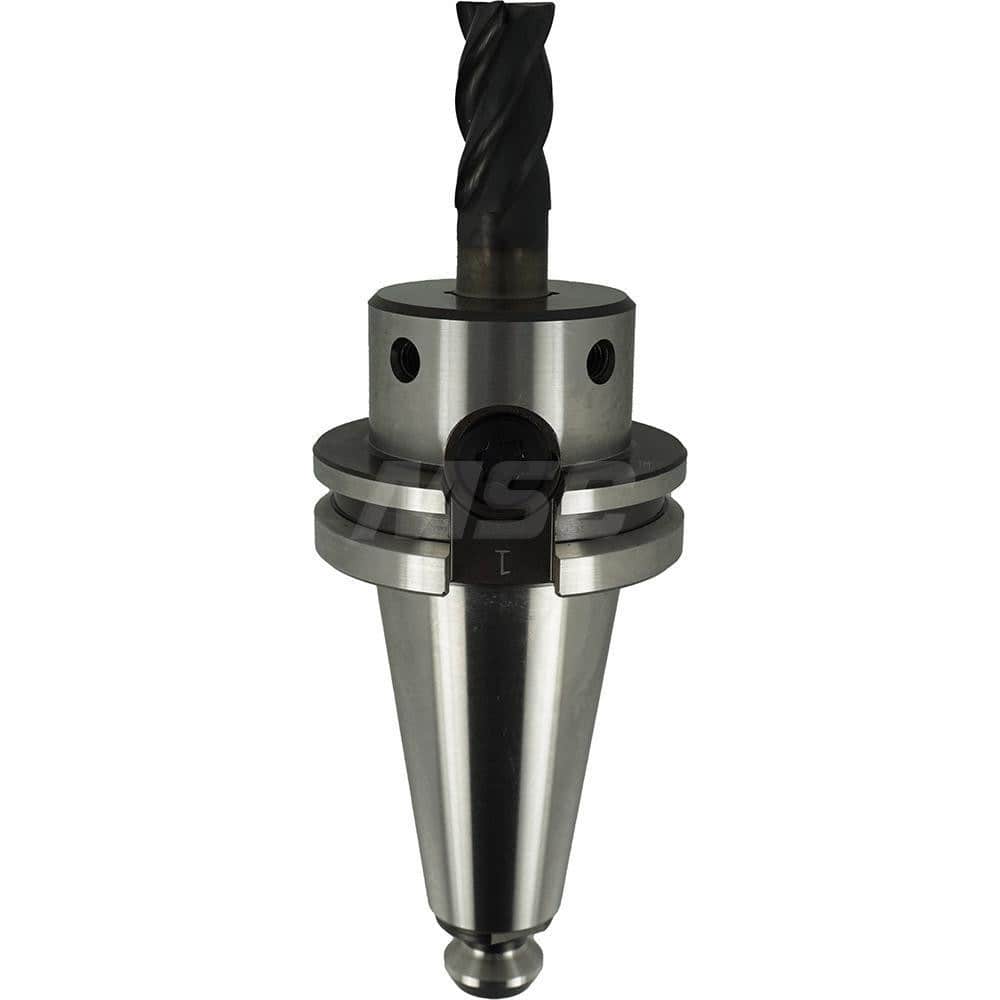

ST Series CAT40 Assembly & Interactive Dashboard: Includes Holder, Retention Knob & Solid Carbide End Mill ″5/8″ Dia, 1-1/4″ LOC, 4 Flutes, 0.030″ Corner Radius, AlTiCrN″
Item #: 12502621
Brand: Accupro
Model #: 9078384/1055427
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 1-1/4 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | Yes |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Smart-Weldon |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Corner Radius Tolerance | +0.00000 to -0.00100 |
| Mill Diameter Tolerance | +0.000000 to -0.001000 |
| Shank Diameter Tolerance | h6 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Ultra Fine Micrograin |
| Series | ST |
| Additional Information | Includes CAT40 Smart Adapter Body & Screw; Mazak Retention Knob |
| TIR Maximum (Decimal Inch) | 0.0004 |
| TIR Maximum (mm) | 0.01 |
| For Use With. | Okuma, Fadal, Mazak Hurco & Milltronics Machine |
| Single Or Double End | Single |
| Coating/Finish | AlTiCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
 | |
| MSC Part # | 12502621 |
| Mfr Part # | 9078384/1055427 |
| Country of OriginCountry of Origin is subject to change | UNITED STATES |
