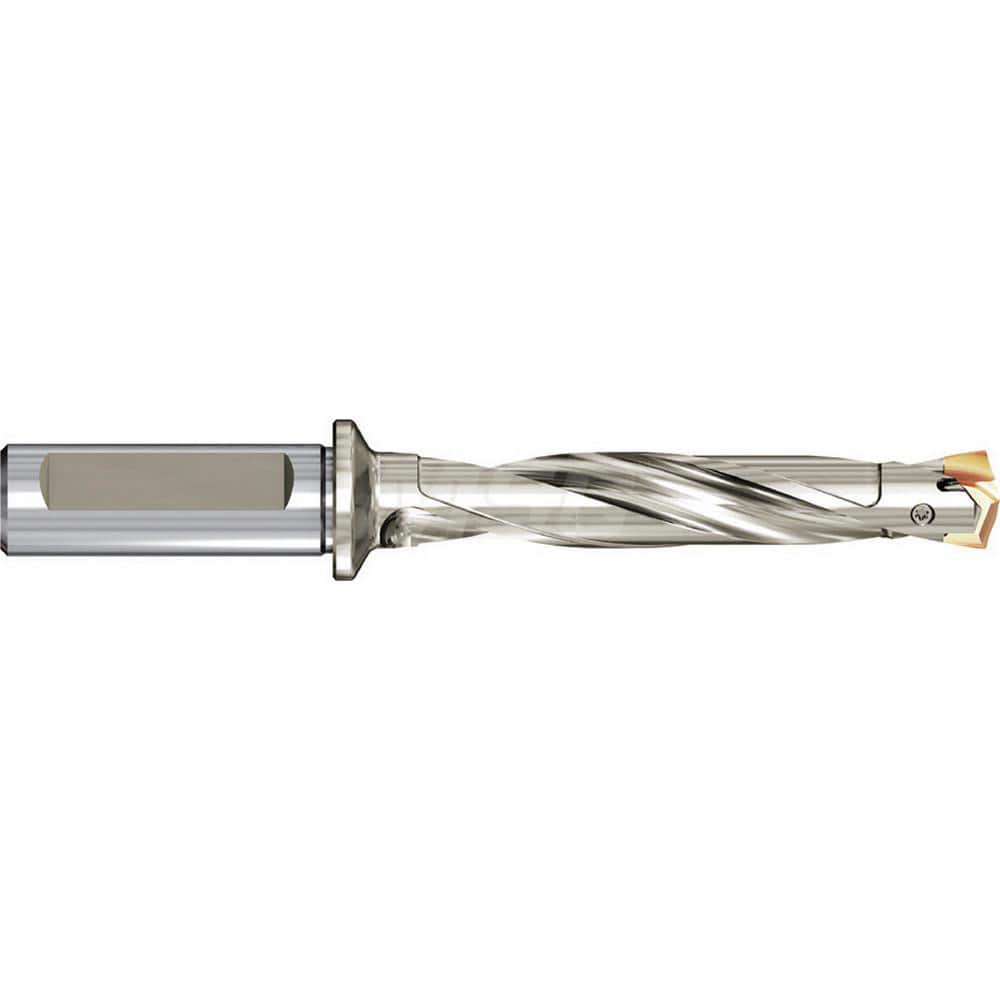

Replaceable Tip Drill: 0.9448 to 0.9803'' Drill Dia, 7.875″ Max Depth Seat Size 0.3000, Through Coolant
Item #: 12497020
Brand: YG-1
Model #: ZD24008125
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.9448 |
| Maximum Drill Diameter (Decimal Inch) | 0.9803 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 7.8750 |
| Insert Style | S24 |
| Shank Diameter (Inch) | 1-1/4 |
| Insert Seat Size | 0.3000 |
| Maximum Drill Depth Range (Decimal Inch) | 6.0000 to 8.0000 |
| Series | ZD24008 |
| Toolholder Style | i-one |
| Coolant Through | Yes |
