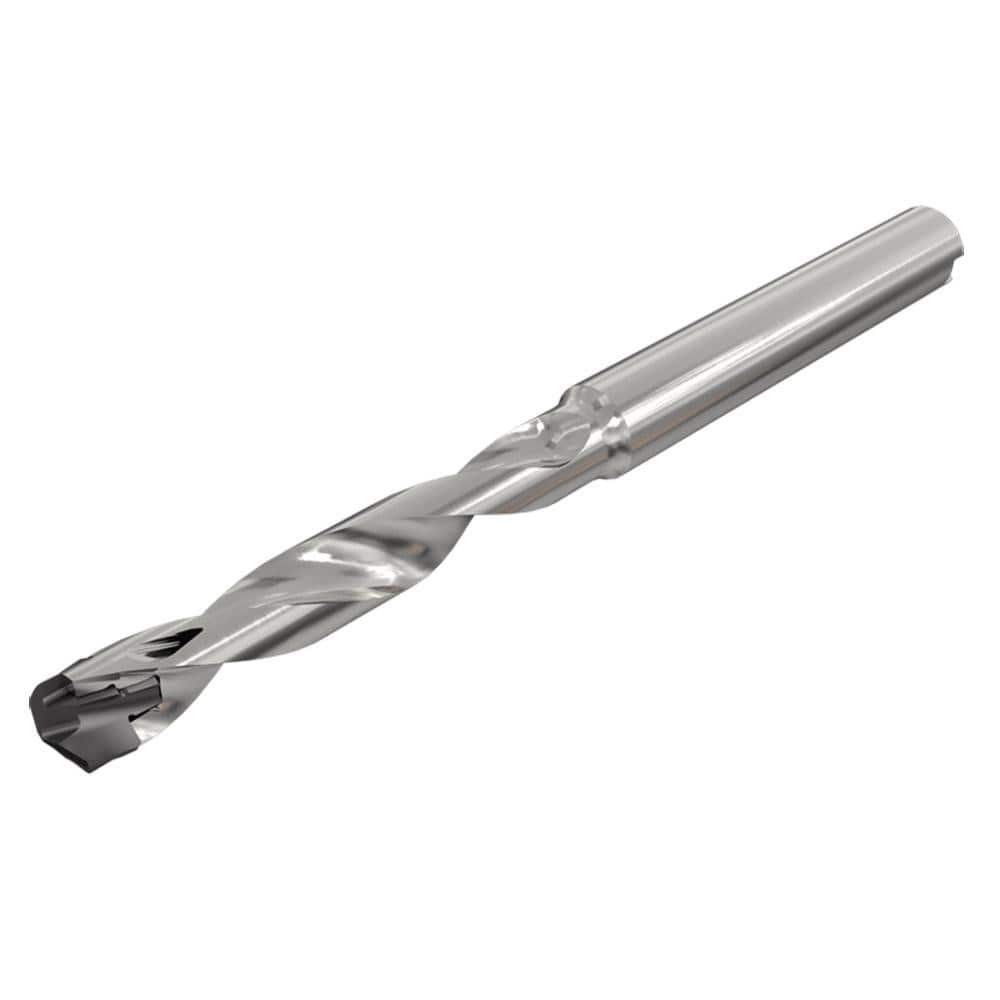

Replaceable Tip Drill: 9 to 9.4 mm Drill Dia, 46.35 mm Max Depth, 10 mm Straight-Cylindrical Shank Uses ICP Inserts, 96.8 mm OAL, Through Coolant
Item #: 12471488
Brand: Iscar
Model #: 3359502
Product Specifications
| Minimum Drill Diameter (mm) | 9.00 |
| Maximum Drill Diameter (mm) | 9.40 |
| Maximum Drill Depth (mm) | 46.35 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 10.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 9 |
| Overall Length (mm) | 96.80 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (mm) | 46.35 |
| Body Length | 56.80 |
| Shank Length (mm) | 40.00 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
