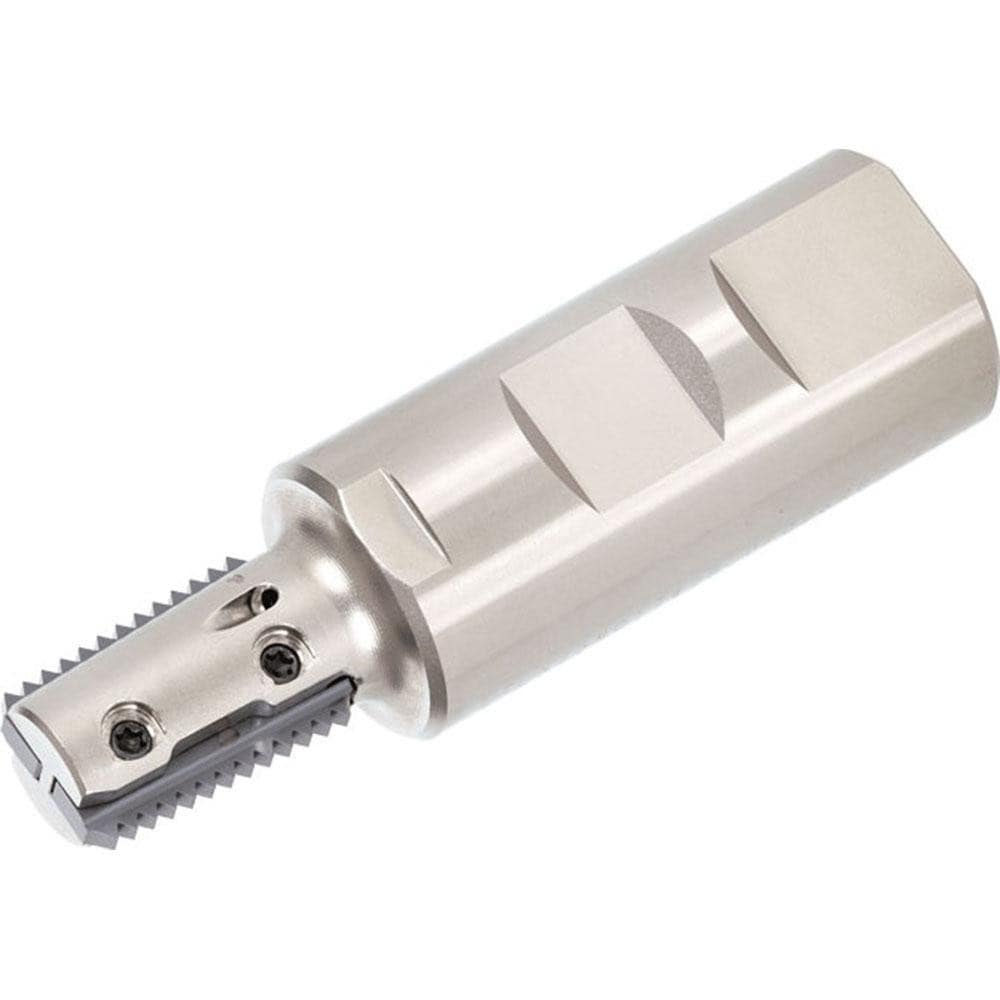

Indexable Thread Mills; Cutting Diameter (Decimal Inch): 0.6878; Maximum Hole Depth (Decimal Inch): 3.3465; Maximum Cutting Length (Decimal Inch): 0.9840; Compatible Insert Style: TL; Insert Style: TL
Item #: 06218986
Brand: Tungaloy
Model #: 6775044
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6878 |
| Maximum Hole Depth (Decimal Inch) | 3.3465 |
| Maximum Cutting Length (Decimal Inch) | 0.9840 |
| Compatible Insert Style | TL |
| Insert Style | TL |
| Compatible Insert Size Code | 25S.. |
| Toolholder Style | ETTL |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Holding Method | Screw |
| Number of Threading Inserts | 2 |
| Overall Length (Decimal Inch) | 3.3460 |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Cutting Direction | Neutral |
| Toolholder Material | Steel |
| Thread Type | Internal; External |
| Series | ETTL |
| Flute Type | Straight |
| Number Of Flutes | 2 |
| Insert Size | 25S.. |
| Coolant Through | Yes |
| UNSPSC Code | 23291800 |
