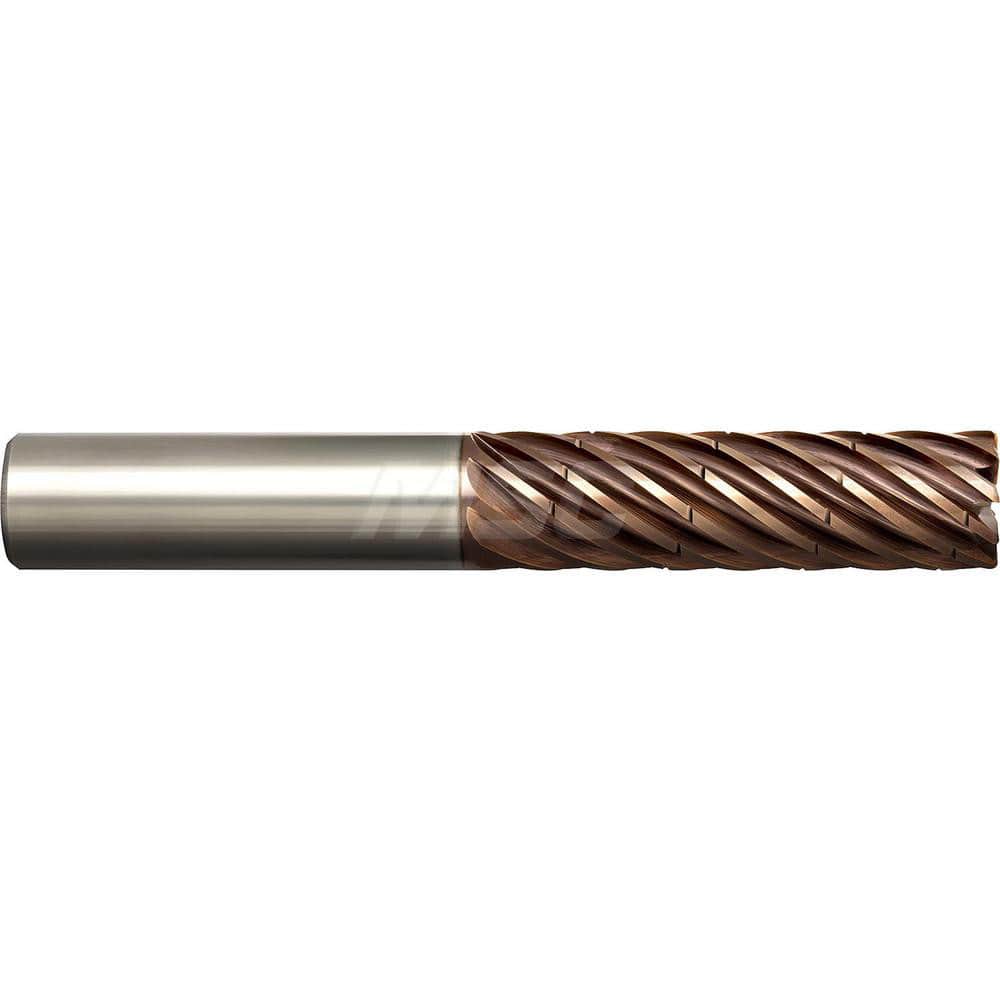

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 16.00 ; Mill Diameter (Decimal Inch): 0.6299 ; End Type: Corner Radius ; Corner Radius (mm): 1.00 ; Number of Flutes: 9 ; Material: Solid Carbide
Item #: 12443339
Brand: M.A. Ford
Model #: 380CBM1600-1.0R
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 16.00 ; Mill Diameter (Decimal Inch): 0.6299 ; End Type: Corner Radius ; Corner Radius (mm): 1.00 ; Number of Flutes: 9 ; Material: Solid Carbide
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1.00 |
| Number of Flutes | 9 |
| Material | Solid Carbide |
| Finish/Coating | Altima Xtreme |
| Length of Cut (mm) | 42.0000 |
| Shank Diameter (mm) | 16.0000 |
| Overall Length (mm) | 92.0000 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | No |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | No |
| Flute Direction | Right Hand |
