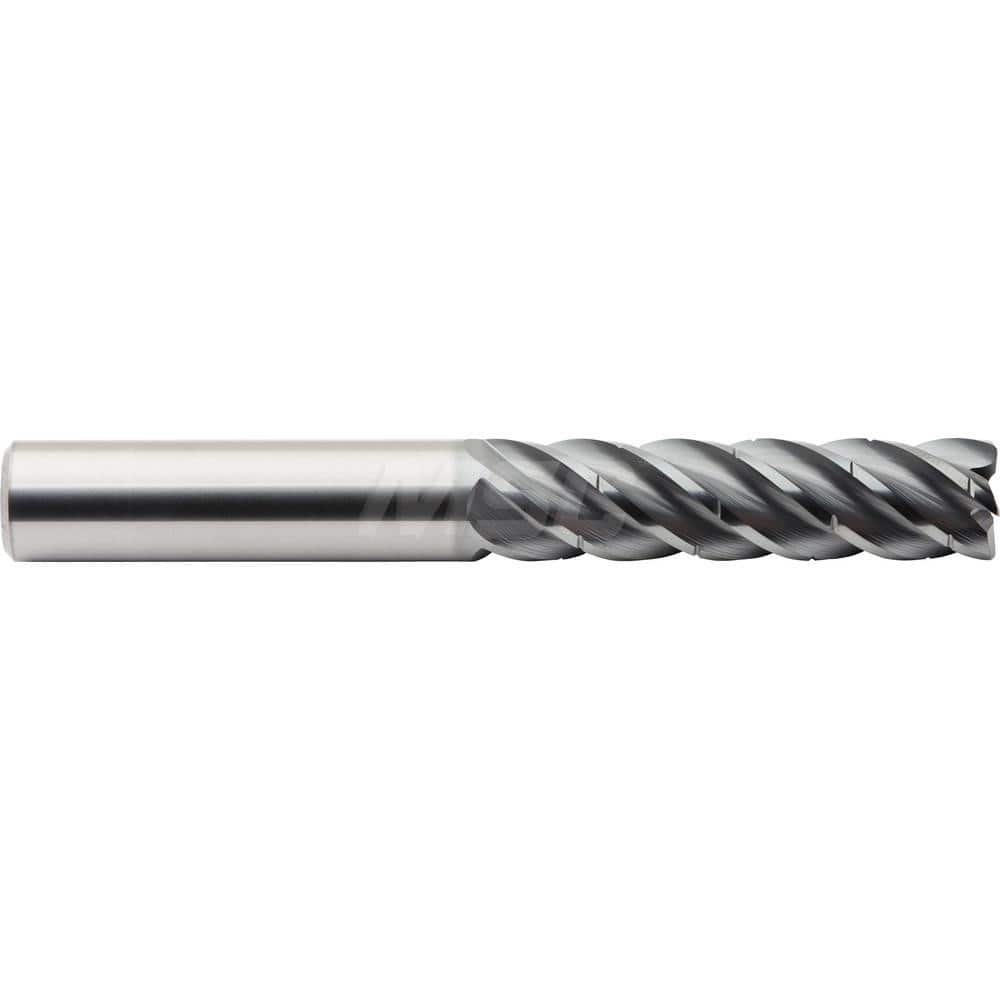

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.030 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 12440269
Brand: M.A. Ford
Model #: 278XCB62504B
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Inch): 0.030 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.030 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | ALtima? Blaze |
| Length of Cut (Inch) | 3 |
| Length of Cut (Decimal Inch) | 3.0000 |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 6 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Index | Yes |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
