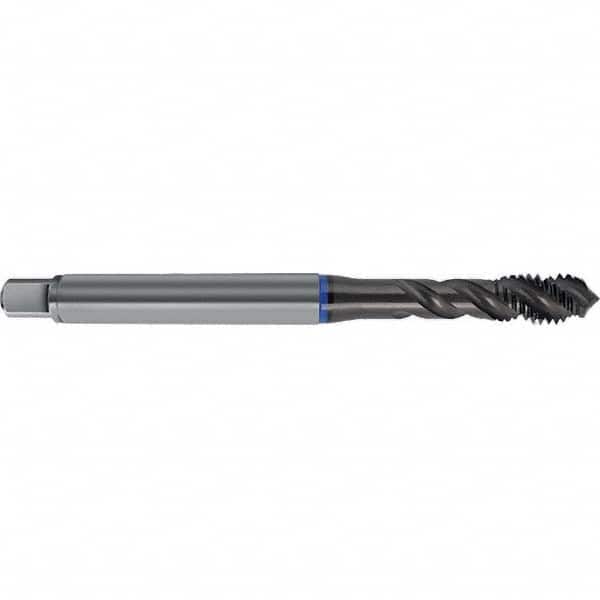

Spiral Flute Tap: M8 x 1.25, Metric, 3 Flute, Semi-Bottoming, 6H + 0.1 Class of Fit, TiAlN Finish Right Hand Flute, Right Hand Thread, D13 & D14, Series 4627
Item #: 12266151
Brand: Guhring
Model #: 9046270080000
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (mm) | M8 x 1.25 |
| Thread Standard | Metric |
| Thread Limit | D14; D13 |
| Thread Pitch (mm) | 1.25 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 14.00 |
| Overall Length (mm) | 90.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | Yes |
| Shank Diameter (mm) | 8.00 |
| Neck Length (mm) | 35.00 |
| Tapping Depth (mm) | 35.00 |
| Square Size (mm) | 6.20 |
| Flute Style | Spiral |
| Material Application | Aluminum; Nickel-Titanium Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 4627 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 6H + 0.1 |
