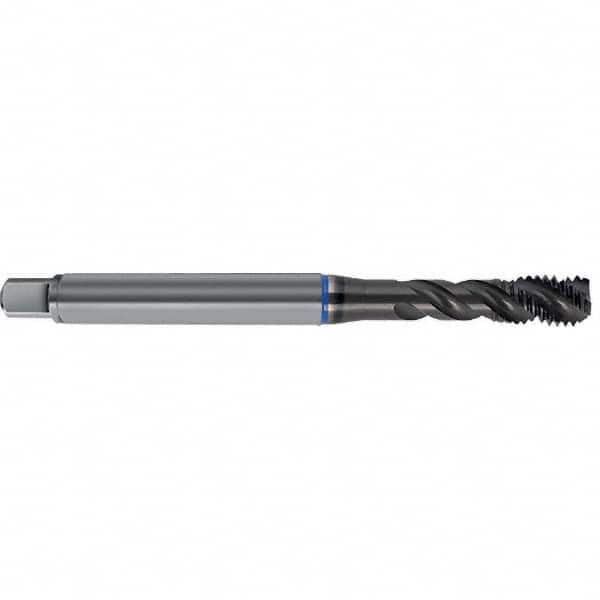

Spiral Flute Tap: M12 x 1.75, Metric, 3 Flute, Bottoming, 6HX Class of Fit, TiAlN Finish Right Hand Flute, Right Hand Thread, D8 & D9, Series 4630
Item #: 12262622
Brand: Guhring
Model #: 9046300120000
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (mm) | M12 x 1.75 |
| Thread Standard | Metric |
| Thread Limit | D8; D9 |
| Thread Pitch (mm) | 1.75 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 18.50 |
| Overall Length (mm) | 110.00 |
| Chamfer | Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (mm) | 9.00 |
| Neck Length (mm) | 49.00 |
| Square Size (mm) | 7.00 |
| Flute Style | Spiral |
| Material Application | Aluminum; Nickel-Titanium Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 4630 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 6HX |
