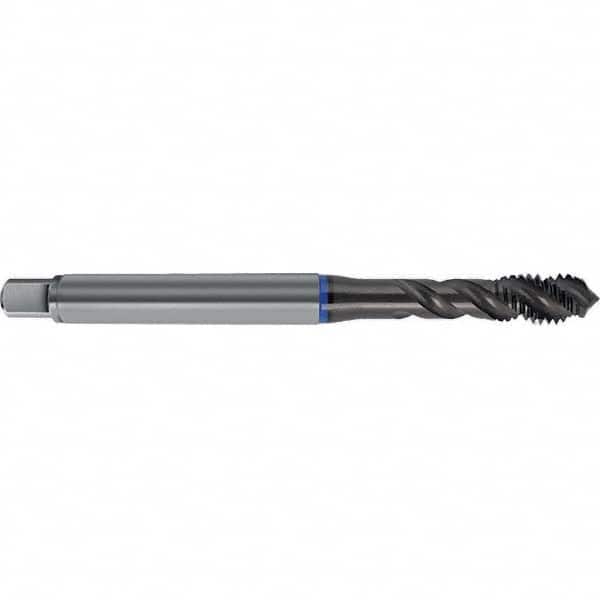

Spiral Flute Tap: 1/4-20, UNC, 3 Flute, Semi-Bottoming, 2BX Class of Fit, TiAlN Finish Right Hand Flute, Right Hand Thread, H4 & H5, Series 0391
Item #: 12261509
Brand: Guhring
Model #: 9003910063500
Product Specifications
| Coating/Finish | TiAlN |
| Thread Size (Inch - 0 Decimals) | 1/4-20 |
| Thread Standard | UNC |
| Thread Limit | H4; H5 |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 13.00 |
| Overall Length (mm) | 80.00 |
| Chamfer | Semi-Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Application | Blind Hole Threading |
| Oversize | No |
| Shank Diameter (mm) | 7.00 |
| Neck Length (mm) | 30.00 |
| Tapping Depth (mm) | 30.00 |
| Square Size (mm) | 5.50 |
| Flute Style | Spiral |
| Material Application | Aluminum; Nickel-Titanium Alloy; Stainless Steel; Cast Iron; Steel |
| Series | 0391 |
| Coolant Through | No |
| Teeth per Inch | 20 |
| Number Of Flutes | 3 |
| Class Of Fit | 2BX |
