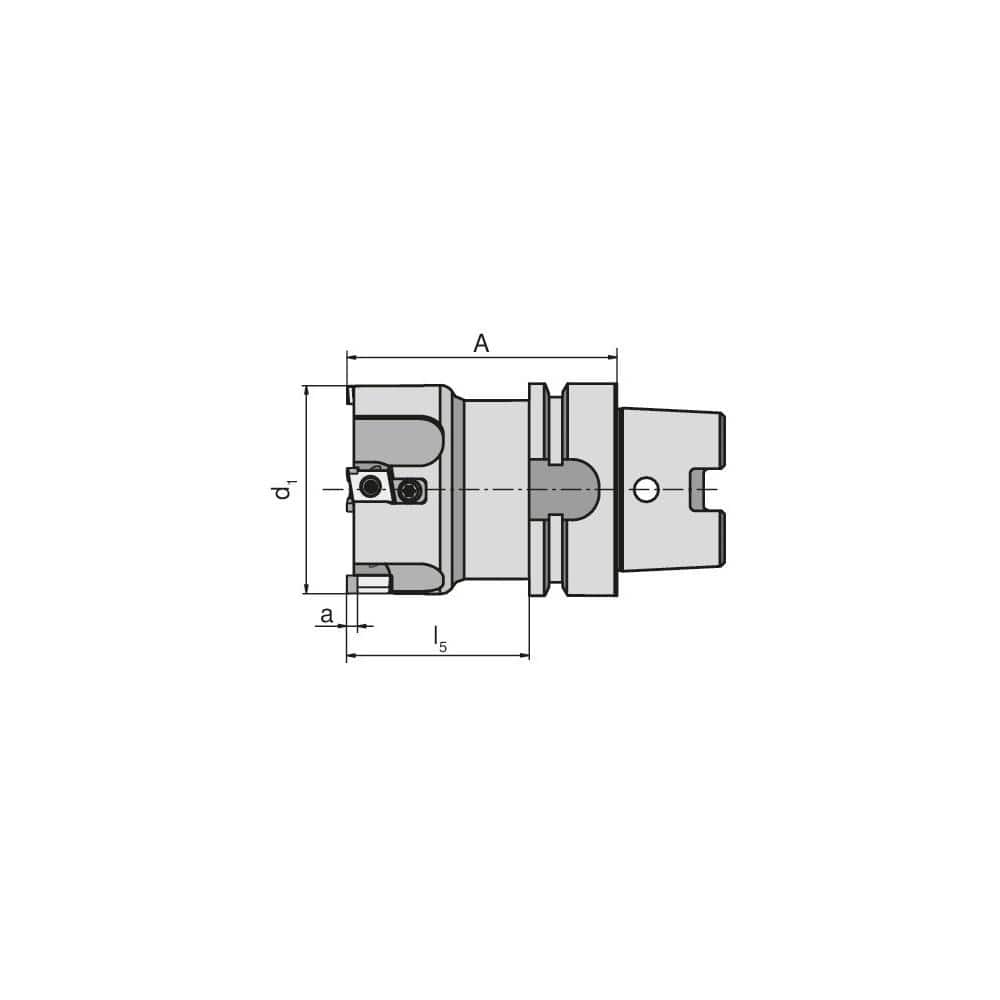

Indexable Square-Shoulder End Mill: MHPC.125.R.0812H63A123, Taper Shank Uses 8, Normal Pressure, 90.00 mm OAL
Item #: 12198123
Brand: Ceratizit
Model #: 5072112508
Product Specifications
| Minimum Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 11.00 |
| Cutter Style | MHPC |
| Shank Type | Taper |
| Maximum Ramping Angle | 0 |
| Insert Holding Method | Screw |
| Shank Taper Size | HSK63A |
| Overall Length (mm) | 90.00 |
| Tool Material | Steel |
| Series | MHPC-12 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Head Length (mm) | 90.00 |
| Maximum RPM | 22000 |
| Tool Application | Facing; Milling; Shouldering |
| Primary Workpiece Material | Non-Ferrous Metal |
| Usable Length (mm) | 90.000 |
| Number Of Flutes | 8 |
| Number Of Cutter Inserts | 8 |
| Coolant Through | Normal Pressure |
