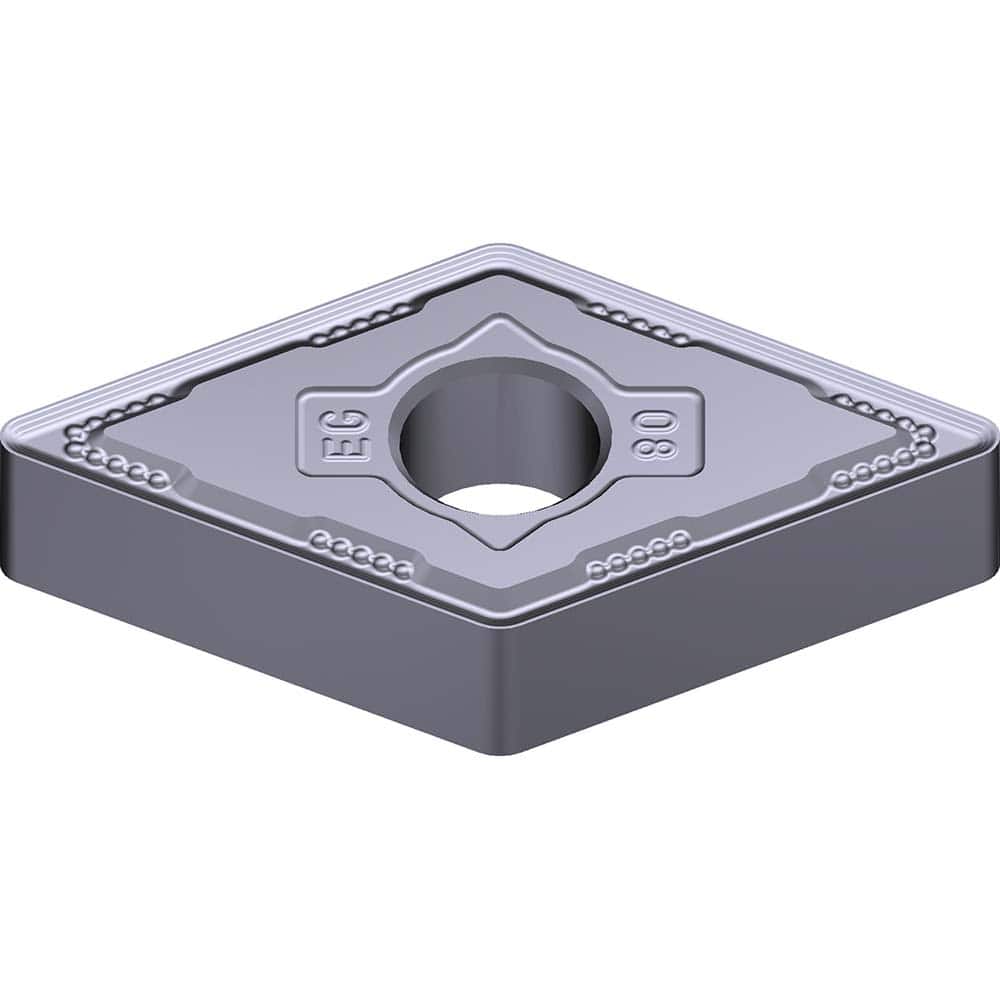

DNGG431EEG-AC5015S Carbide Turning Insert Absotech Bronze Finish, 0.6102″ Long, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 55° Included Angle, Series AC5000S
Item #: 12154670
Brand: Sumitomo
Model #: 10T5W43
Product Specifications
| Insert Style | DNGG |
| Insert Shape Code | D |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6102 |
| Secondary Workpiece Material | Superalloy |
| Secondary Workpiece Material Code | S; N |
| Ansi Code | DNGG431EEG |
| Iso Code | DNGG150404N-EG |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | DNGG431EEG-AC5015S |
| Chip Breaker | EEG |
| Coating/Finish | Absotech Bronze |
