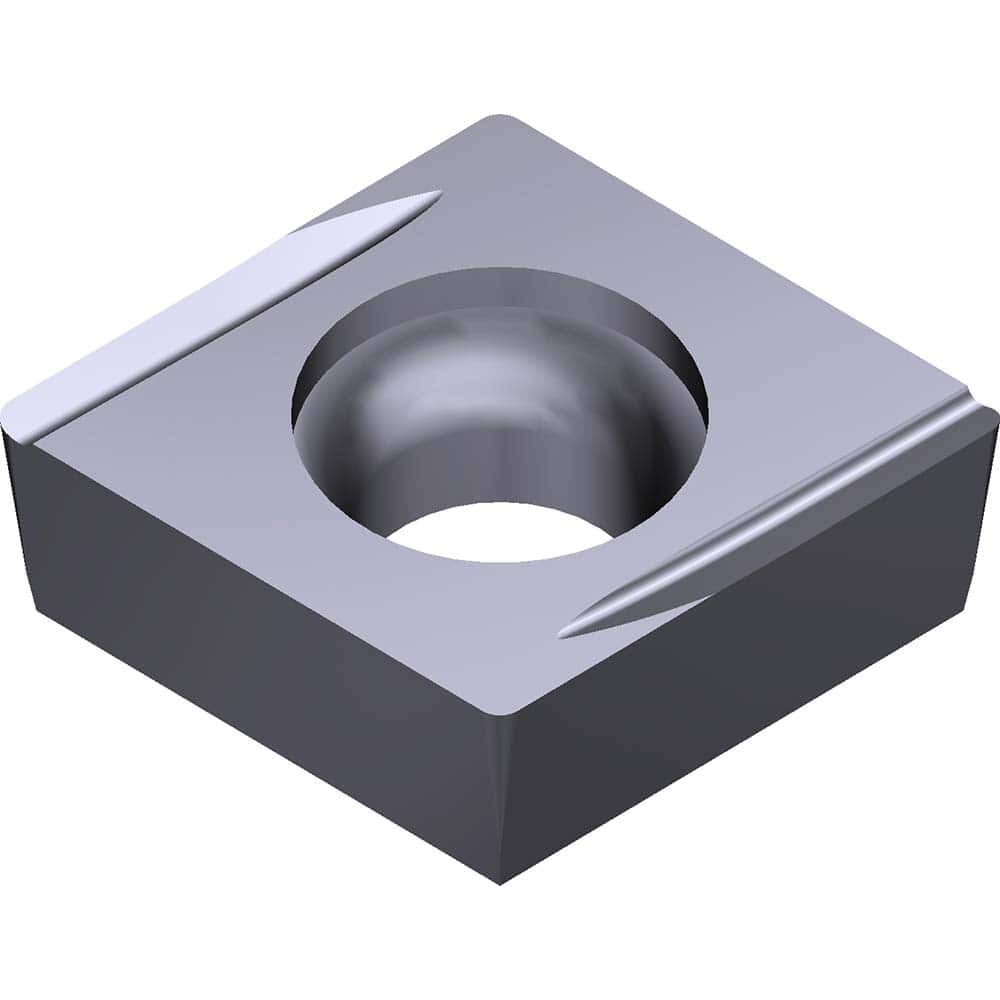

CCGT21.50LFX-AC5025S Carbide Turning Insert Absotech Bronze Finish, 0.252″ Long, 1/4″ Inscribed Circle, 0.0039″ Corner Radius, 0.0937″ Thick, 80° Included Angle, Series AC5000S
Item #: 12154589
Brand: Sumitomo
Model #: 10T6190
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 21.5 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2520 |
| Secondary Workpiece Material | Superalloy |
| Secondary Workpiece Material Code | S |
| Ansi Code | CCGT21.50LFX |
| Iso Code | CCGT060201L-FX |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | CCGT21.50LFX-AC5025S |
| Chip Breaker | LFX |
| Coating/Finish | Absotech Bronze |
