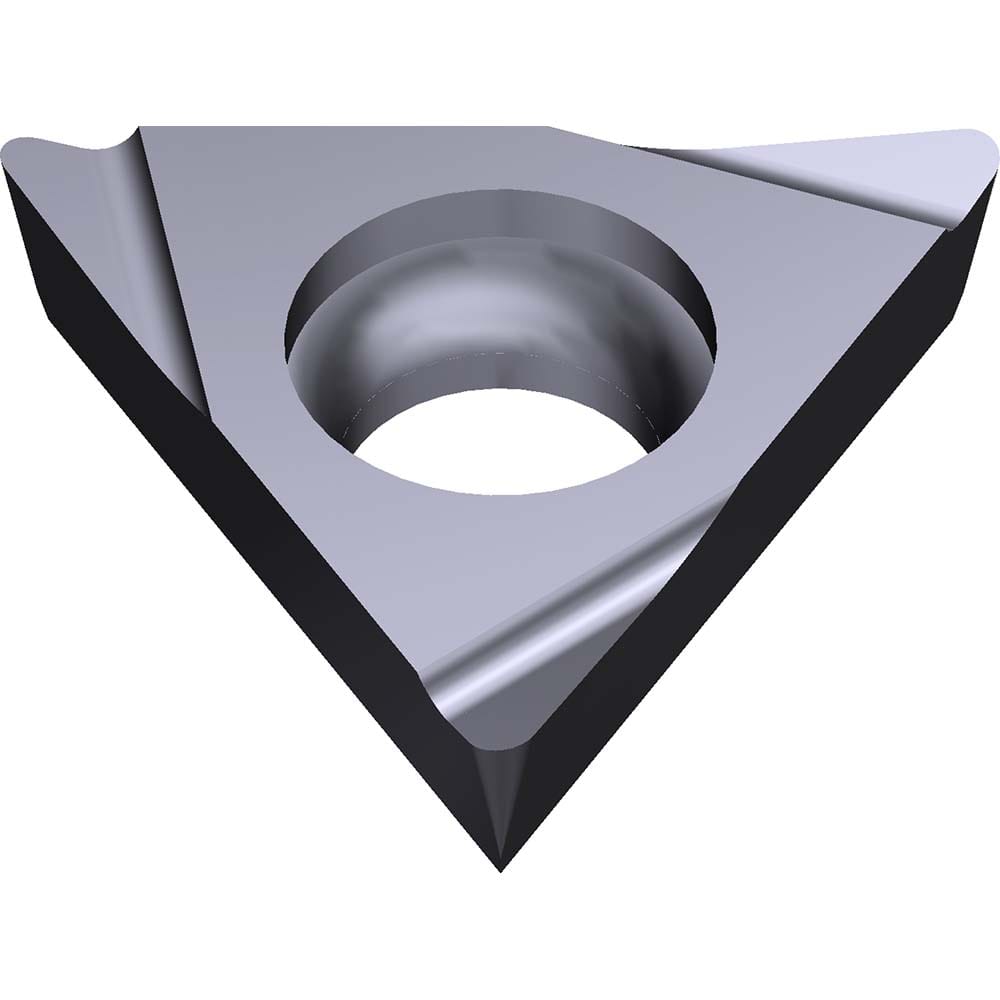

TBGT521RFY-AC5025S Carbide Turning Insert Absotech Bronze Finish, 0.2717″ Long, 0.1563″ Inscribed Circle, 0.0157″ Corner Radius, 0.0626″ Thick, 60° Included Angle, Series AC5000S
Item #: 12154423
Brand: Sumitomo
Model #: 10T6AAQ
Product Specifications
| Insert Style | TBGT |
| Insert Shape Code | T |
| Insert Size Code | 521 |
| Insert Shape | Triangle |
| Clearance Code | B |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 2.2000 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.0626 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 5 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2717 |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | TBGT521RFY |
| Iso Code | TBGT060104R-FY |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | TBGT521RFY-AC5025S |
| Chip Breaker | FY |
| Coating/Finish | Absotech Bronze |
