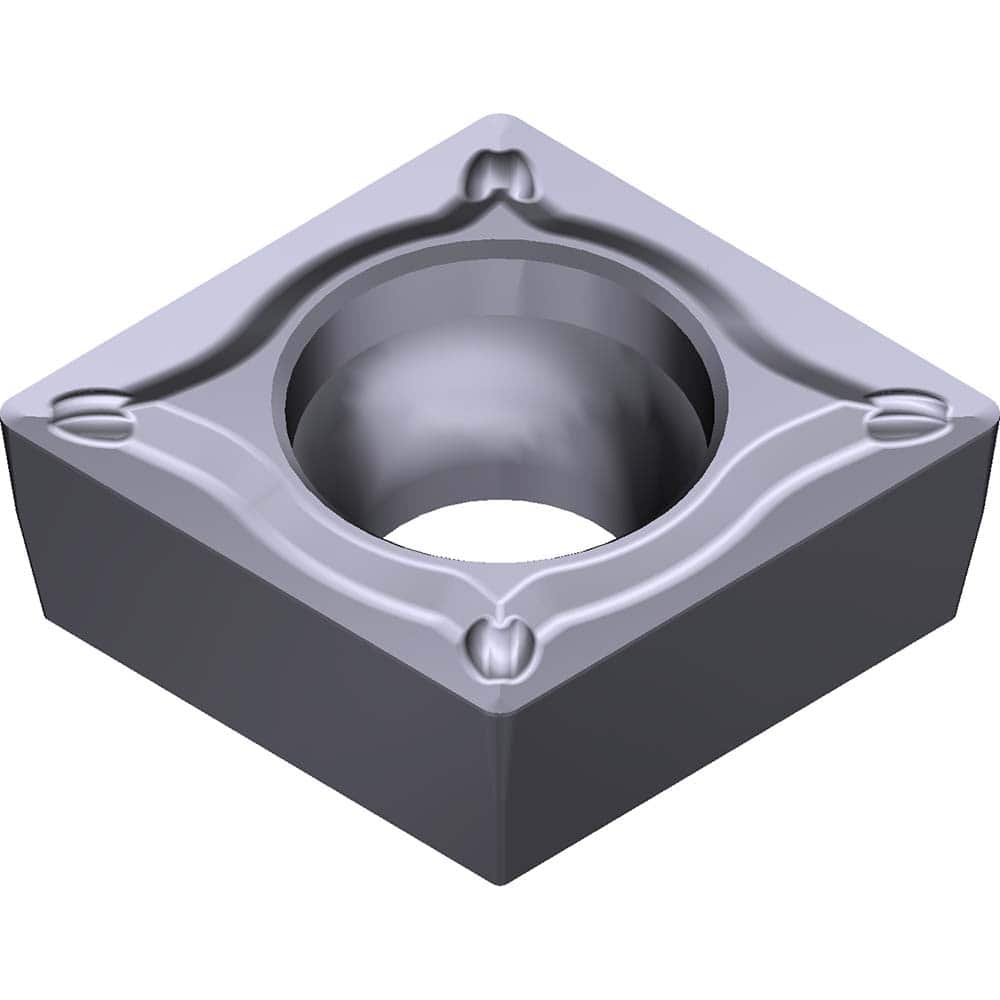

CPMT321ESU-AC5015S Carbide Turning Insert Absotech Bronze Finish, 0.3819″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1252″ Thick, 80° Included Angle, Series AC5000S
Item #: 12154381
Brand: Sumitomo
Model #: 19T5114
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 321 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Hole Diameter (Decimal Inch) | 4.4000 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Powdered Metal |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel |
| Ansi Code | CPMT321ESU |
| Iso Code | CPMT090304N-SU |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | CPMT321ESU-AC5015S |
| Chip Breaker | ESU |
| Coating/Finish | Absotech Bronze |
