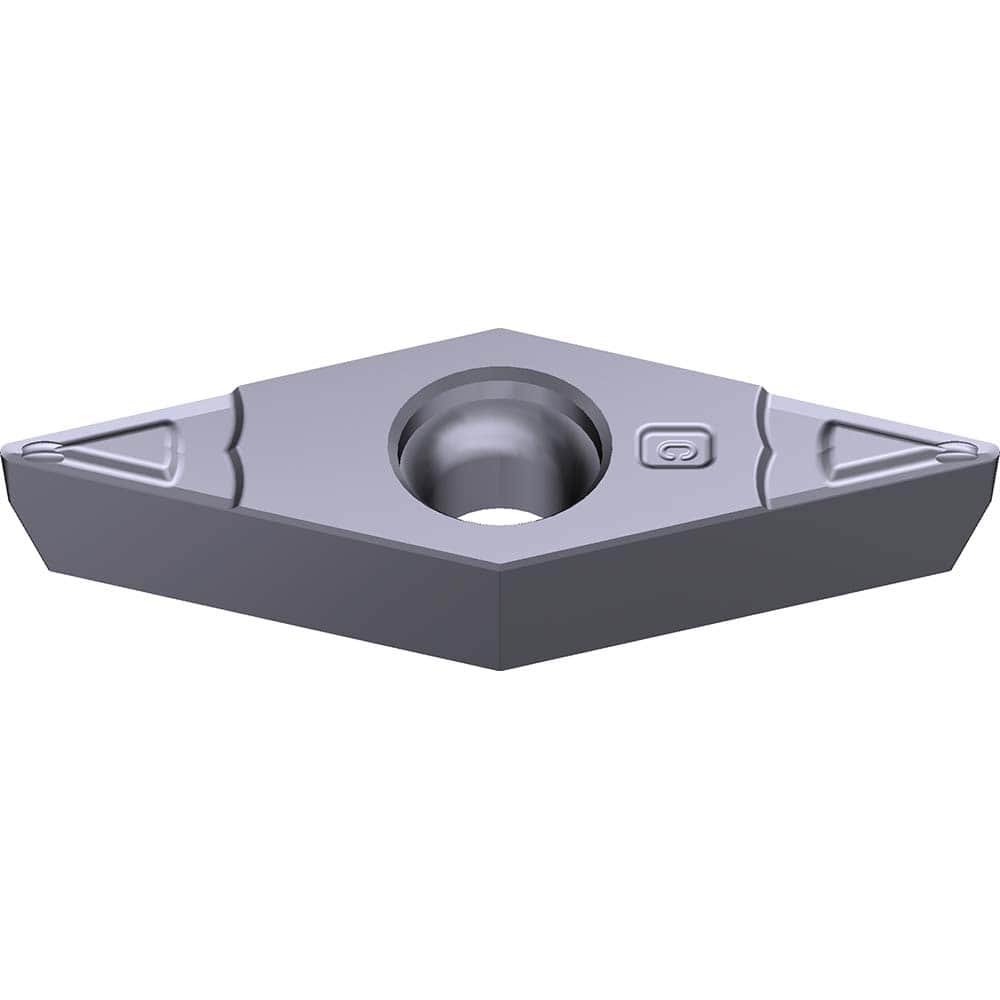

VBMT220.5ESU-AC5025S Carbide Turning Insert Absotech Bronze Finish, 0.437″ Long, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 0.1252″ Thick, 35° Included Angle, Series AC5000S
Item #: 12153995
Brand: Sumitomo
Model #: 19T6CDP
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 220.5 |
| Clearance Code | B |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | AC5000S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4370 |
| Secondary Workpiece Material | Superalloy |
| Secondary Workpiece Material Code | S |
| Ansi Code | VBMT220.5ESU |
| Iso Code | VBMT110302N-SU |
| Standards | ISO 13399; ANSI |
| Manufacturers Catalog Number | VBMT220.5ESUAC5025S |
| Chip Breaker | ESU |
| Coating/Finish | Absotech Bronze |
