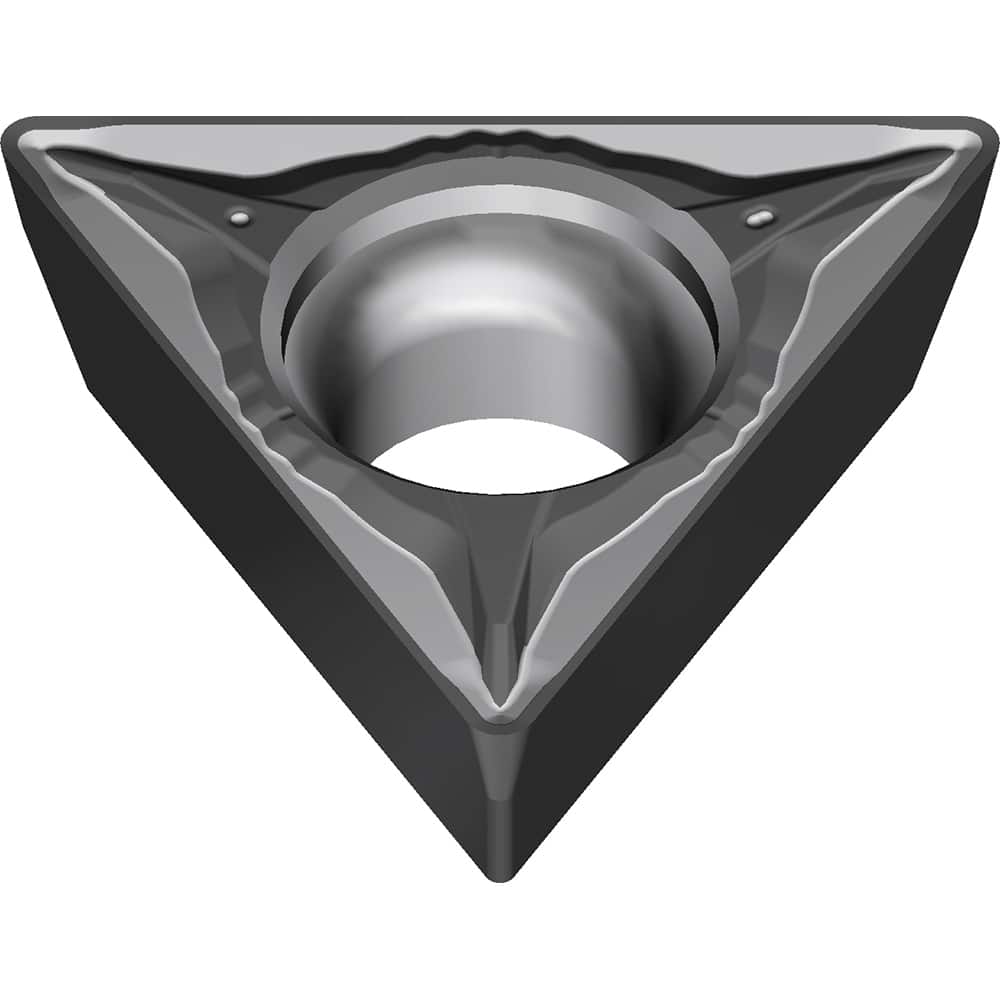

TPMT331EGU AC8025P Carbide Turning Insert Absotech Finish, 0.6496″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 60° Included Angle, Series AC8000P
Item #: 12073193
Brand: Sumitomo
Model #: 19P7DDJ
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 331 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8025P |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC8000P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.6496 |
| Primary Workpiece Material | Steel |
| Iso Code | TPMT160404N-GU |
| Manufacturers Catalog Number | TPMT331EGU-AC8025P |
| Chip Breaker | EGU |
| Coating/Finish | Absotech |
