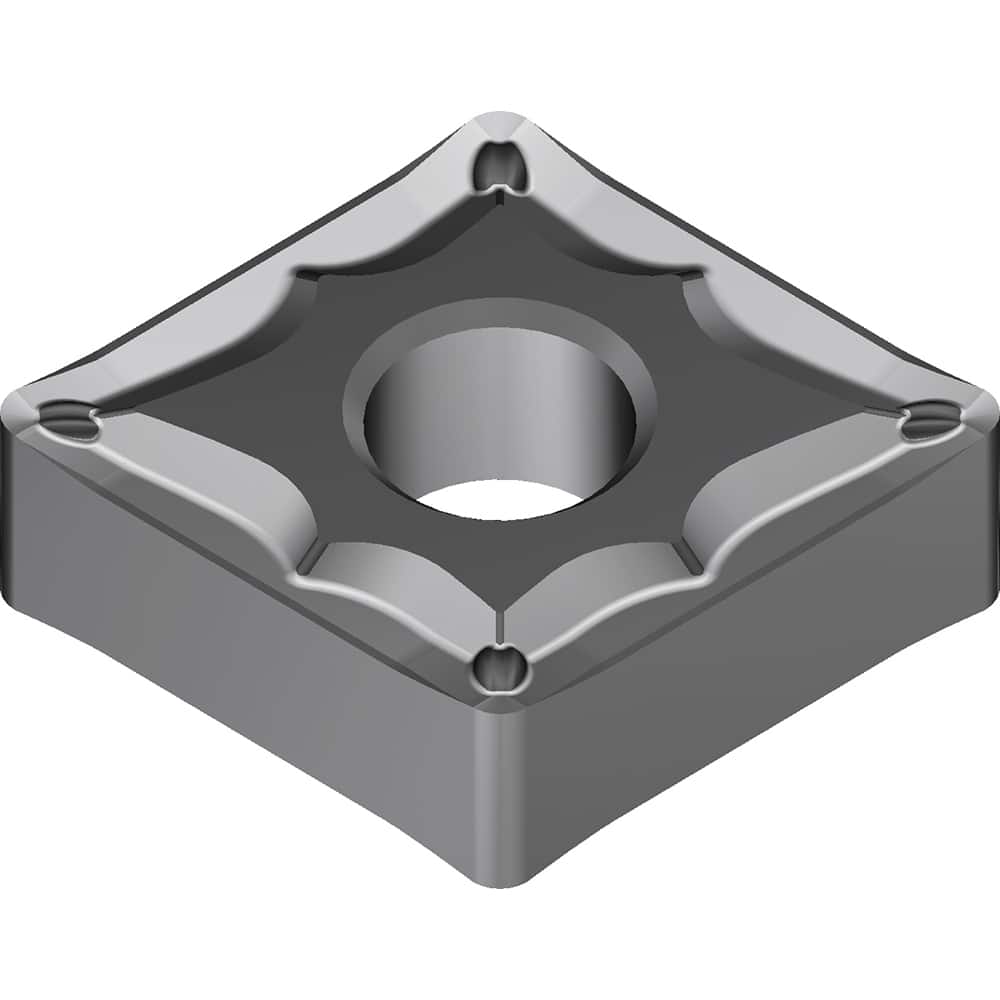

CNMG333ESU AC8025P Carbide Turning Insert Absotech Finish, 0.3819″ Long, 3/8″ Inscribed Circle, 0.0472″ Corner Radius, 0.1874″ Thick, 80° Included Angle, Series AC8000P
Item #: 12070736
Brand: Sumitomo
Model #: 19P7CVV
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 333 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8025P |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC8000P |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3819 |
| Primary Workpiece Material | Steel |
| Iso Code | CNMG090412N-SU |
| Manufacturers Catalog Number | CNMG333ESU-AC8025P |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
