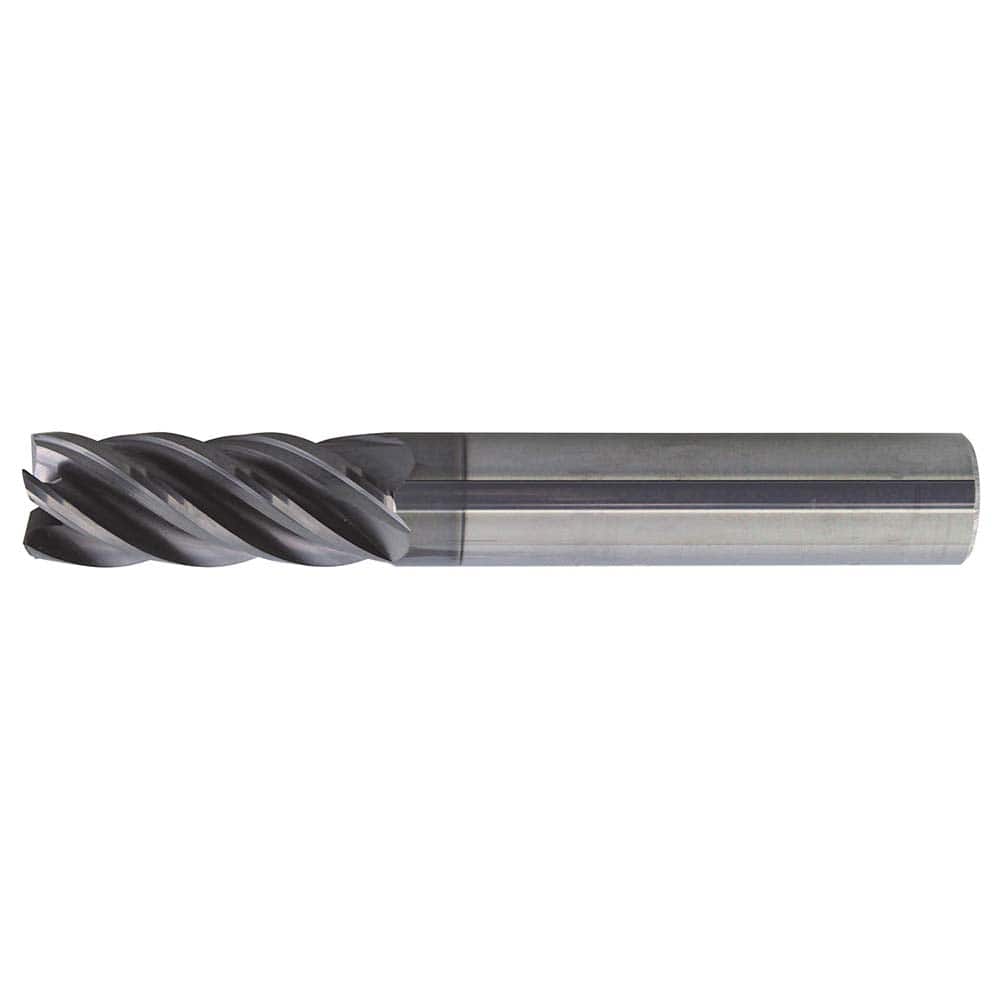

ProMax - 5/8" Diam, 2-1/4" LOC, 5/8" Shank Diam, 4" OAL, 5 Flute, Solid Carbide, Single End Square End Mill
Item #: 12014817
Brand: ProMax
Model #: US556194
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| Length of Cut (Decimal Inch) | 2.1250 |
| Material | Solid Carbide |
| Finish/Coating | PowerLayer |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Single or Double End | Single |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | Yes |
| Flute Type | Spiral |
| Length Type | Standard |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Chipbreaker | No |
| Extended Reach | No |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Series/List | US556 |
