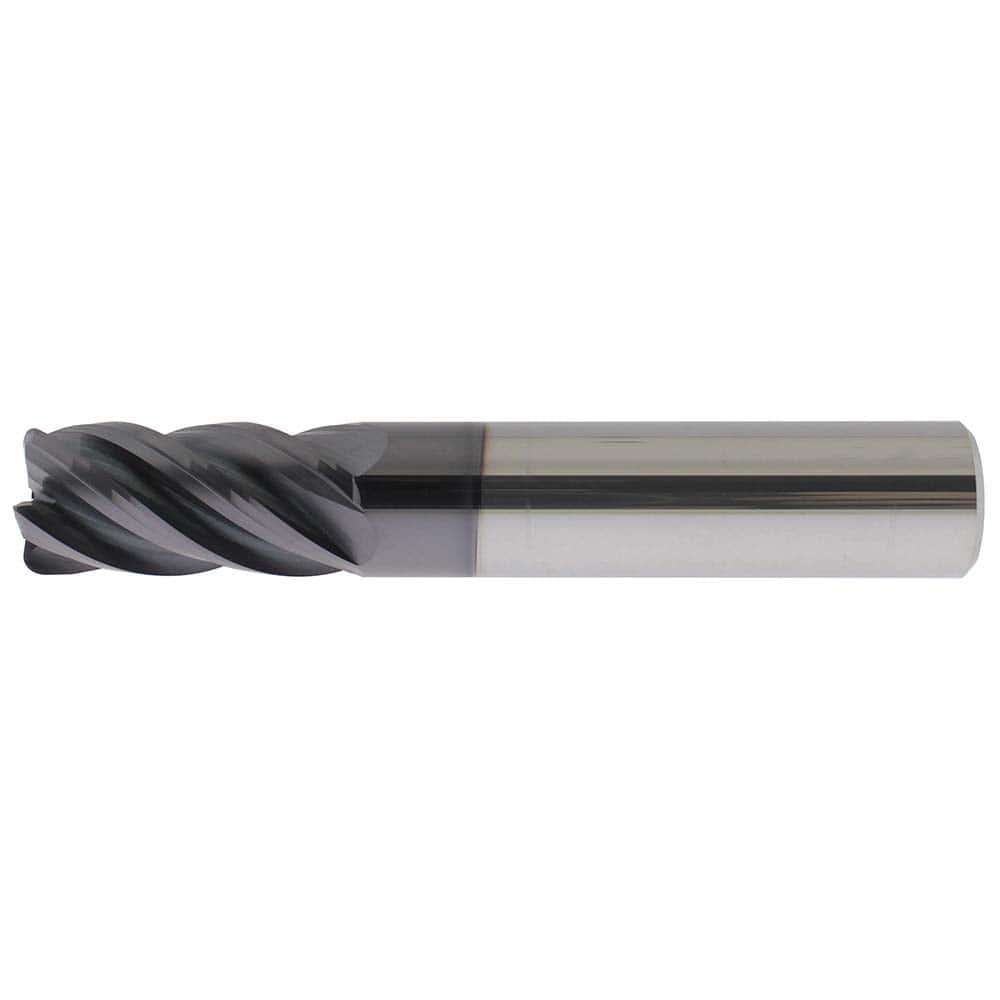

ProMax - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Single ; Corner Radius (Inch): 0.0300 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 12011110
Brand: ProMax
Model #: US556185
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Single ; Corner Radius (Inch): 0.0300 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Single |
| Corner Radius (Inch) | 0.0300 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | PowerLayer |
| Length of Cut (Inch) | 1-5/8 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Shank Diameter (Inch) | 0.6250 |
| Overall Length (Inch) | 3-1/2 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
| Corner Radius Tolerance (Decimal Inch) | +/-0.001 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | No |
| Shank Type | Cylindrical Shank |
| Series/List | US556 |
| Chipbreaker | No |
