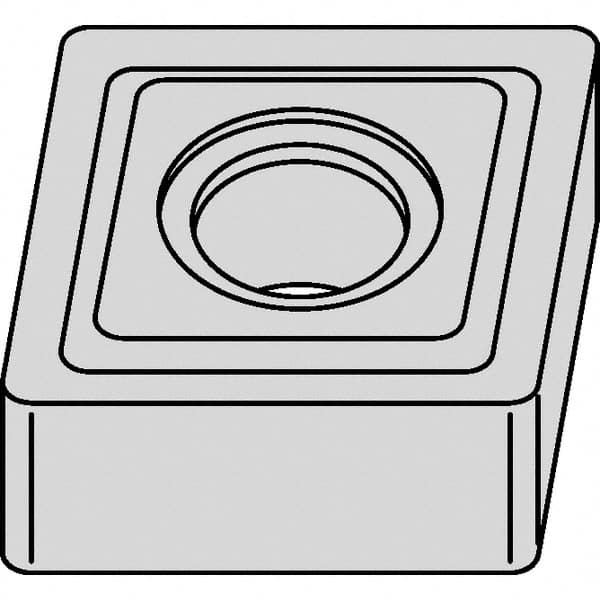

Kennametal - CNMG866 Grade KCP25 Carbide Turning Insert
Item #: 08333577
Brand: Kennametal
Model #: 3751521
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.79 |
| Length (Decimal Inch) | 1.0154 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | KCP25 |
| Coating | TiCN/Al2O3 |
| Material Grade | C2/C3/C6/C7 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Series | KENLOC |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
