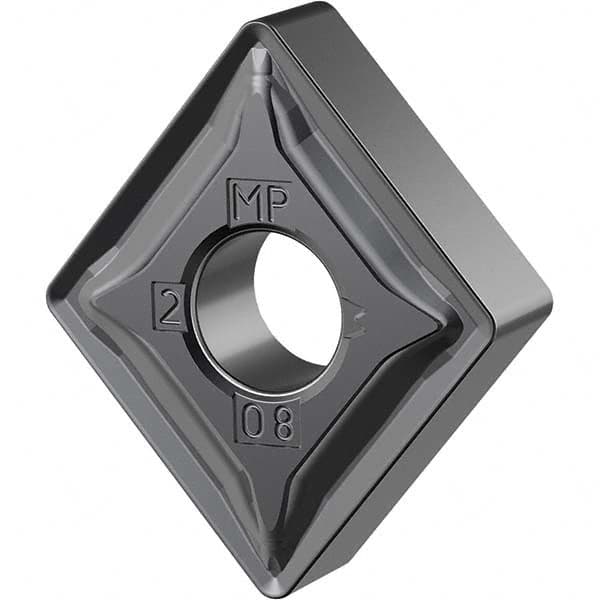

Kennametal - 432CNGG FS Grade KCS10B Carbide Turning Insert
Item #: 12256160
Brand: Kennametal
Model #: 6756004
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGG |
| Insert Size | 432 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5080 |
| Inscribed Circle (Decimal Inch) | 0.2031 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Material Grade | KCS10B |
| Chip Breaker | FS |
| Insert Length (Decimal Inch) | 0.5080 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNGG120408FS |
| Manufacturers Catalog Number | CNGG432FS |
| Shape | Diamond/Rhombic |
