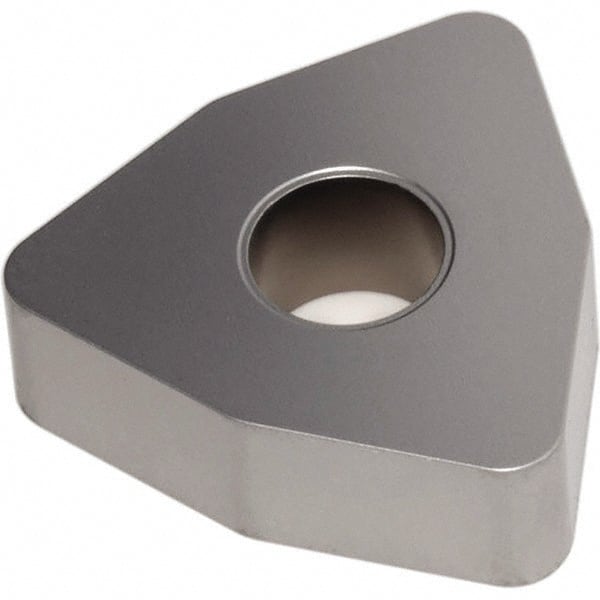

Seco - WNMA332 Flat Top Grade TK1501 Carbide Turning Insert
Item #: 37817194
Brand: Seco
Model #: 03064540
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMA |
| Insert Size | 332 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2598 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | TK1501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K20 |
| Chip Breaker | Flat Top |
| Insert Length (Decimal Inch) | 0.2598 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | WNMA060408 |
| Lead Angle | 95.000 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material | Carbide |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 1/32 |
| Coating Process | Duratomic |
| Coating | Ti(C/N)/Al2O3/Cr |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Material Grade | K20 |
| Material | Carbide |
| Manufacturer's Grade | TK1501 |
| Insert Style | WNMA |
| Insert Size | 332 |
| Thickness (Decimal Inch) | 0.1874 |
| Shape | Trigon |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | Duratomic |
| Coating | Ti(C/N)/Al2O3/Cr |
| Thickness (Decimal Inch) | 0.1874 |
| Material Grade | K20 |
| Material | Carbide |
| Manufacturer's Grade | TK1501 |
| Insert Style | WNMA |
| Length (Decimal Inch) | 0.2598 |
| Insert Size | 332 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Trigon |
