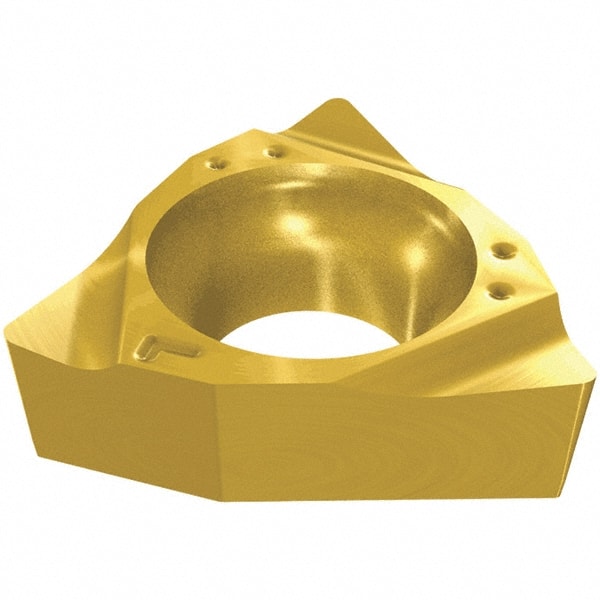

Iscar - WBMT520 Grade IC20N Carbide Turning Insert
Item #: 46699419
Brand: Iscar
Model #: 6166994
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 520 |
| Material | Carbide |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0860 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (Decimal Inch) | 0.0630 |
| Thickness (mm) | 1.59 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| ISO Number | WBMT 520L |
| Relief Angle | 5 |
| Manufacturers Catalog Number | 6166994 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Material | Carbide |
| Coating | Uncoated |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Material | Carbide |
| Manufacturer's Grade | IC20N |
| Insert Style | WBMT |
| Insert Size | 520 |
| Thickness (mm) | 1.59 |
| Thickness (Decimal Inch) | 0.0630 |
| Shape | Trigon |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating | Uncoated |
| Thickness (Decimal Inch) | 0.0630 |
| Material | Carbide |
| Manufacturer's Grade | IC20N |
| Insert Style | WBMT |
| Length (Decimal Inch) | 0.0860 |
| Insert Size | 520 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Multi Use Application | Turning |
| Shape | Trigon |
