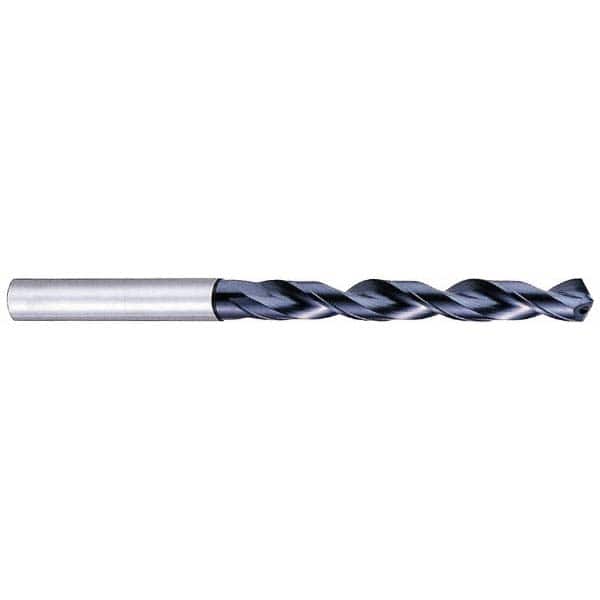

OSG - 10mm 130° Cobalt Jobber Drill
Item #: 09595224
Brand: OSG
Model #: 17393708
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
V is a multi-layer TiCN coating, It is commonly used on carbon, mild steels, aluminum castings and cast iron. V is a proprietary coating exclusive to OSG Tap and Die, Inc.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 10.00 |
| Drill Bit Size (Decimal Inch) | 0.3937 |
| Drill Point Angle | 130 |
| Drill Bit Material | Cobalt |
| Drill Bit Finish/Coating | V |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (Inch) | 3-3/4 |
| Overall Length (Inch) | 5-27/32 |
| Point Type | Standard |
| Shank Diameter (mm) | 10.00 |
| Spiral Type | Regular Spiral |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Web Thinning | R-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | 1700 |
