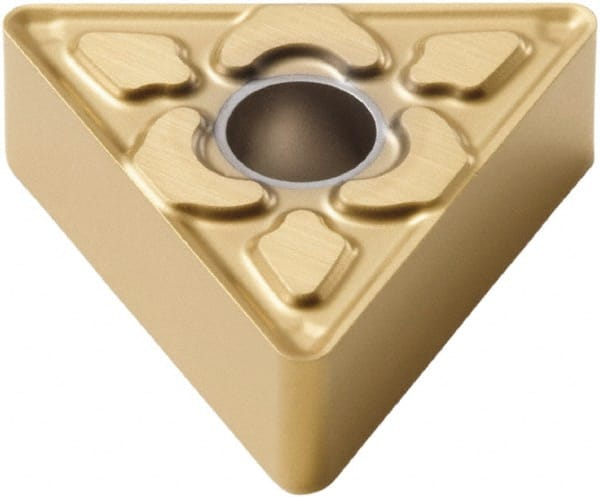

Seco - TNMG332 MF4 Grade CP500 Carbide Turning Insert
Item #: 60178555
Brand: Seco
Model #: 02573897
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 332 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | MF4 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 60 |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 1/32 |
| Coating Process | PVD |
| Coating | TiAlN/TiN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Material Grade | Micrograin |
| Material | Carbide |
| Manufacturer's Grade | CP500 |
| Insert Style | TNMG |
| Insert Size | 332 |
| Thickness (Decimal Inch) | 0.1875 |
| Shape | Triangle |
| Corner Radius (Decimal Inch) | 0.0313 |
| Coating Process | PVD |
| Coating | TiAlN/TiN |
| Thickness (Decimal Inch) | 0.1875 |
| Material Grade | Micrograin |
| Material | Carbide |
| Manufacturer's Grade | CP500 |
| Insert Style | TNMG |
| Insert Size | 332 |
| Maximum Depth of Cut (Decimal Inch) | 0.1600 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
