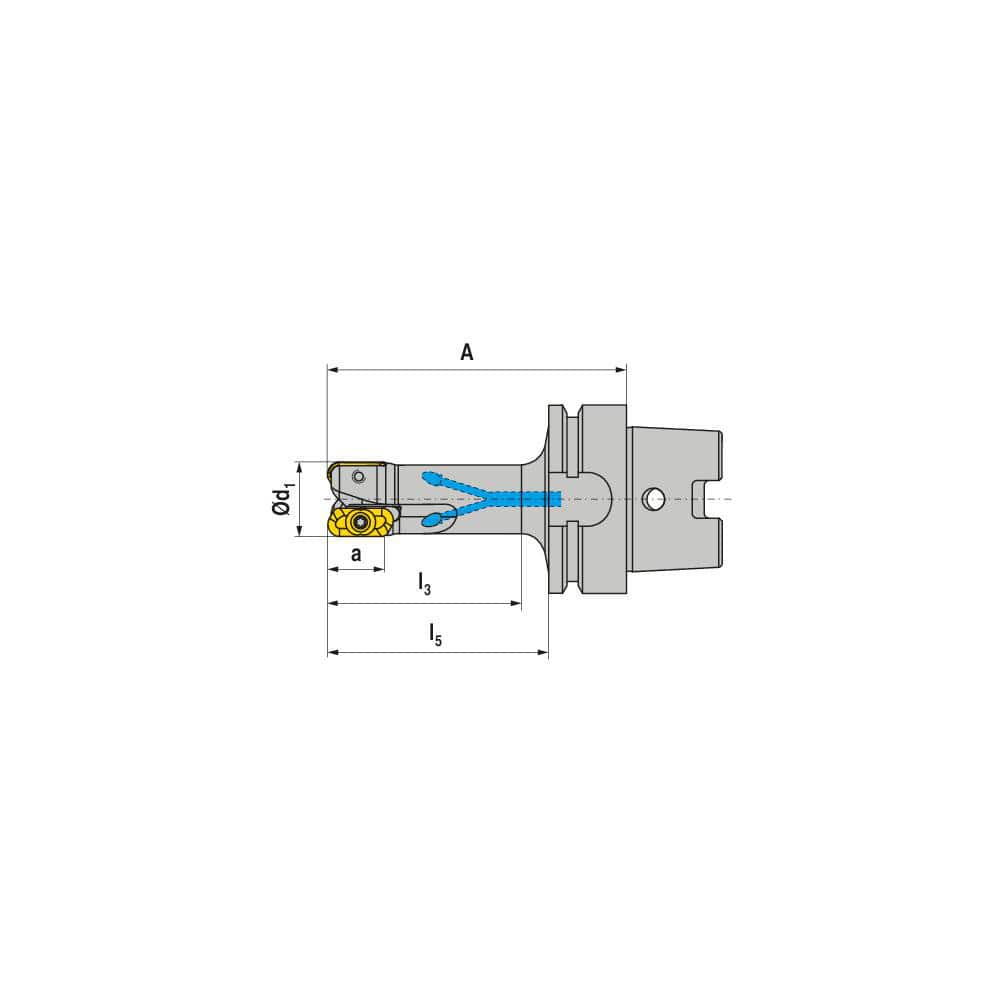

Indexable Square-Shoulder End Mill: MHPC.25.R.0219H63A80, Taper Shank Uses 2, Normal Pressure, 120.00 mm OAL
Item #: 11973831
Brand: Ceratizit
Model #: 50721225
Product Specifications
| Minimum Cutting Diameter (mm) | 25.00 |
| Maximum Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 18.00 |
| Cutter Style | MHPC |
| Shank Type | Taper |
| Maximum Ramping Angle | 11 |
| Insert Holding Method | Screw |
| Shank Taper Size | HSK63A |
| Overall Length (mm) | 120.00 |
| Tool Material | Steel |
| Series | MHPC-19 |
| Flute Type | Straight |
| Lead Angle | 90 |
| Shank Length (mm) | 40.00 |
| Head Length (mm) | 80.00 |
| Maximum RPM | 34300 |
| Tool Application | Facing; Milling; Shouldering; Slotting |
| Primary Workpiece Material | Universal |
| Usable Length (mm) | 80.000 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Normal Pressure |
