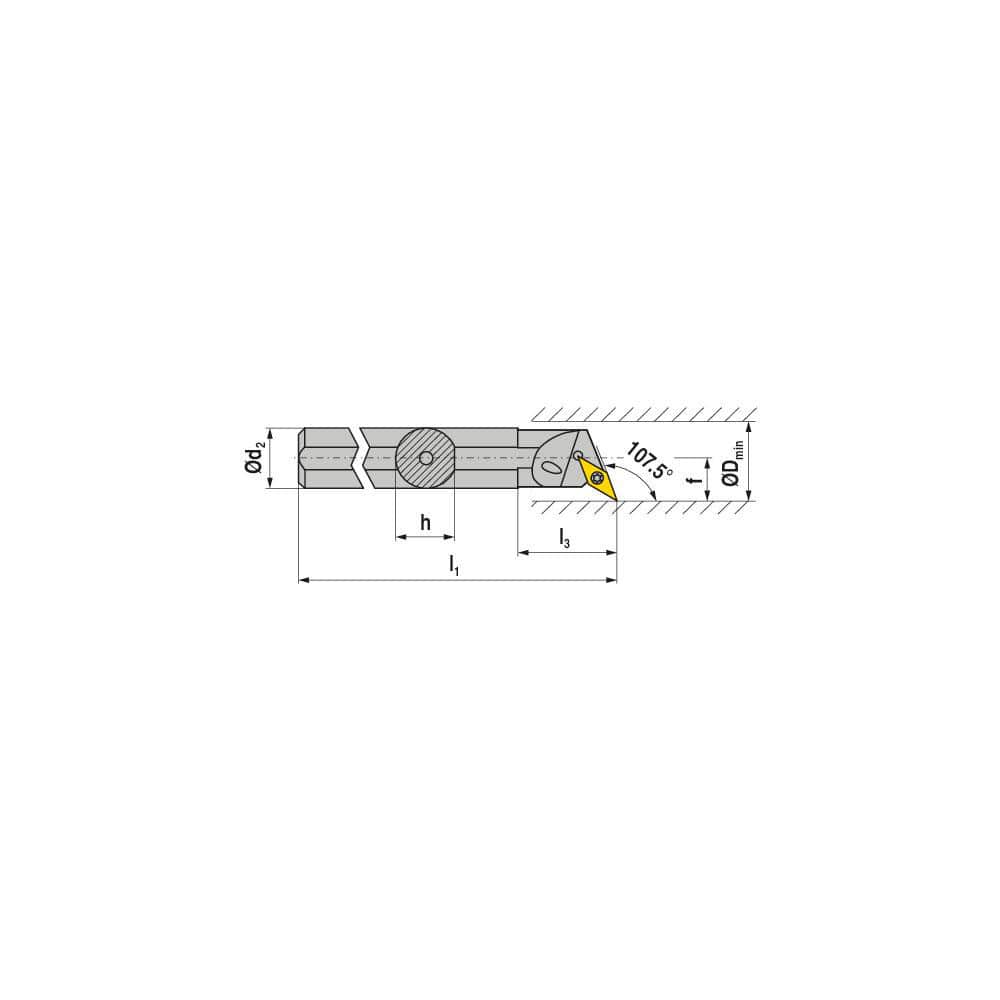

Indexable Boring Bar: S16T SVQCL 3, 1.00 mm Shank Dia, 107.50° N/A Steel 12.0000″ OAL, Screw Clamping,
Item #: 11941416
Brand: Ceratizit
Model #: 7872731626
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 1.3750 |
| Minimum Bore Diameter (Inch) | 1-3/8 |
| Maximum Bore Depth (Decimal Inch) | 0.9100 |
| Toolholder Style | SVQCL |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 1.00 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (mm) | 12.00 |
| Overall Length (Inch) | 12 |
| Compatible Insert Size Code | VC..33. |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | 7.00 |
| Lead Angle | 107.50 |
| Series | MaxiLock-S |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1875 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (Inch) | 3/4 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
