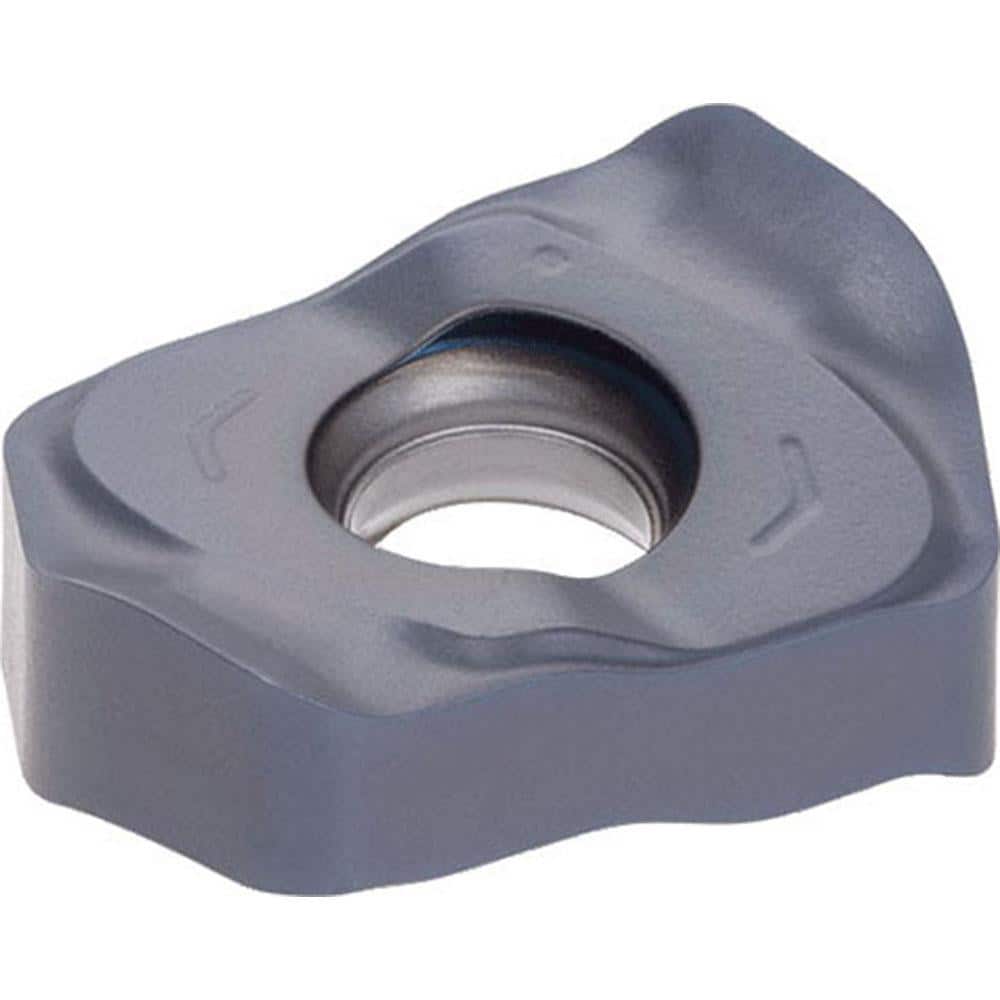

Milling Insert: AH8015, Solid Carbide N/A Finish,
Item #: 11938446
Brand: Tungaloy
Model #: 6789387
Product Specifications
| Insert Style | LNMX |
| Insert Size Code | 04 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH8015 |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0512 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Series | LNMX |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0510 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1690 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; H; M |
| Chip Breaker | HL |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1970 |
