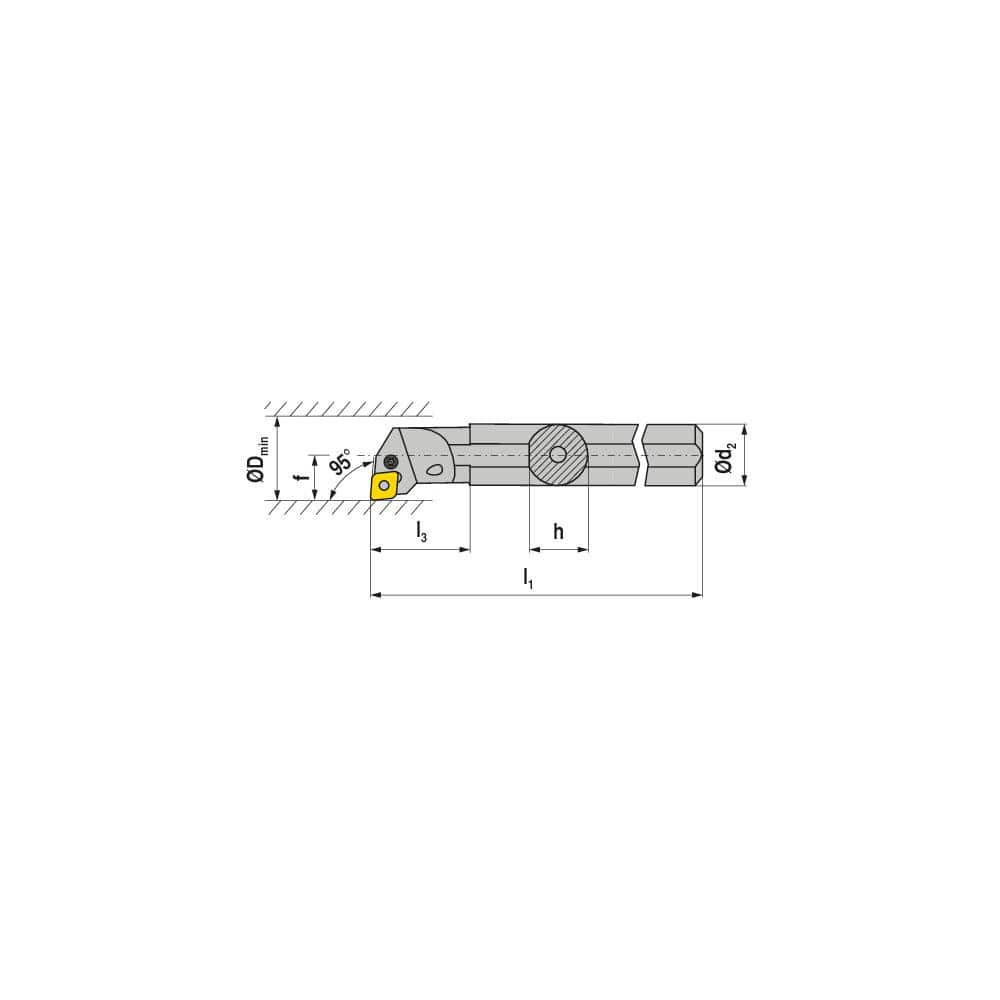

Indexable Boring Bar: S50W PCLNR 16, 63.00 mm Min Bore, 50.00 mm Shank Dia, 95.00° N/A Steel 450.0000″ OAL, Lever Clamp,
Item #: 11741329
Brand: Ceratizit
Model #: 70556050
Product Specifications
| Minimum Bore Diameter (mm) | 63.00 |
| Maximum Bore Depth (mm) | 200.00 |
| Toolholder Style | PCLNR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 50.0000 |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Inch) | 50 |
| Overall Length (Decimal Inch) | 450.0000 |
| Overall Length (mm) | 450.00 |
| Overall Length (Inch) | 450 |
| Compatible Insert Size Code | CN..54. |
| Insert Holding Method | Lever Clamp |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 95.00 |
| Series | MaxiLock-N |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Compatible Insert Thickness (Decimal Inch) | 0.2500 |
| Multi-use Tool | No |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 60.00 |
| Center to Cutting Edge (mm) | 35.00 |
| Primary Workpiece Material | Universal |
| Coolant Through | No |
