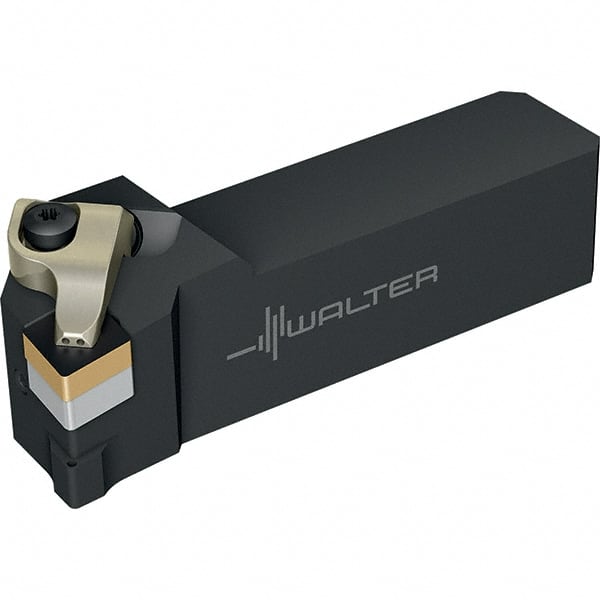

Indexable Turning Toolholder
Item #: 11738770
Brand: Walter
Model #: 7031724
Product Specifications
| Cutting Direction | Left Hand |
| Compatible Insert Size Code | DCLN-P |
| Toolholder Style | DCLN |
| Rake | Negative |
| Rake Angle | -6 |
| Multi-use Tool | No |
| Lead Angle | 95.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Width (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Overall Length (mm) | 152.40 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.7100 |
| Head Length (mm) | 43.50 |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Standards | ISO; ANSI |
