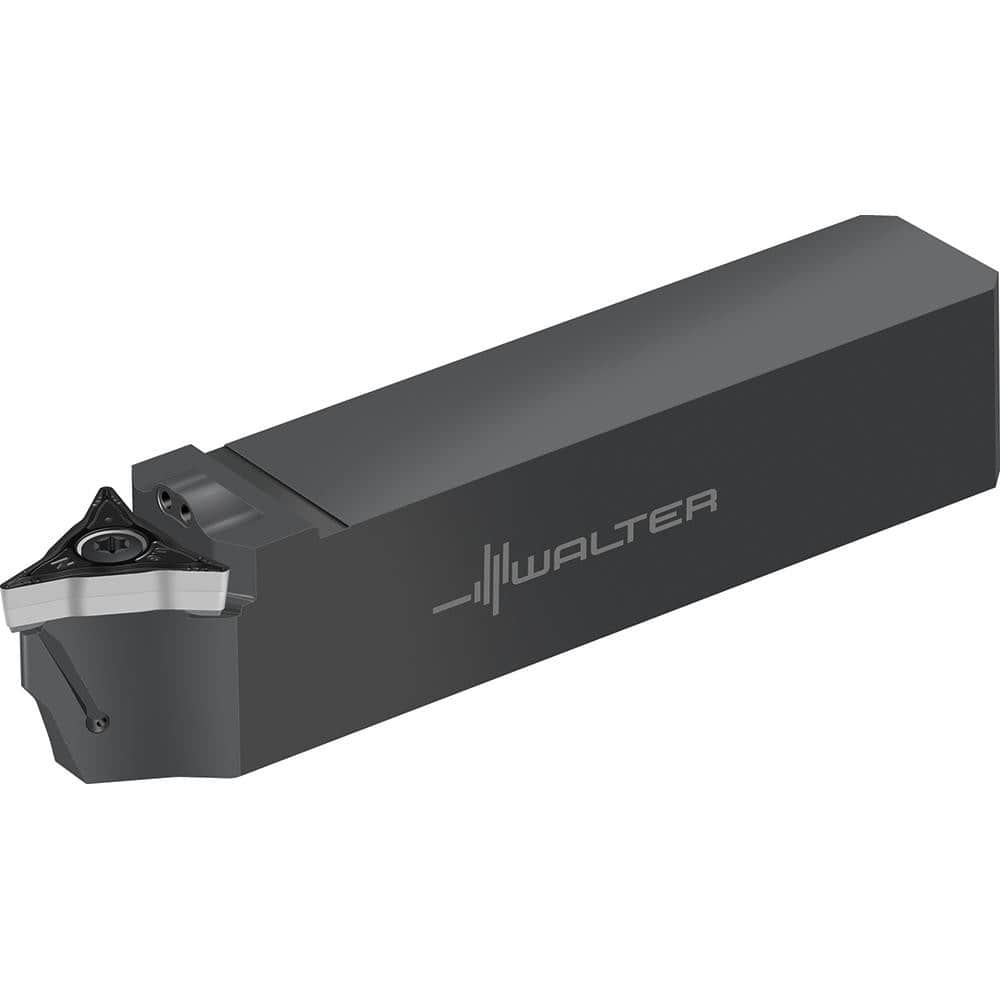

Indexable Turning Toolholders; Cutting Direction: Neutral; Compatible Insert Size Code: WL25; Toolholder Style: W1010; Rake: Positive; Multi-use Tool: No; Lead Angle: 72.3; Insert Holding Method: Screw; Shank Width (Decimal Inch): 0.7500; Shank Width (Inc
Item #: 11651874
Brand: Walter
Model #: 8026838
Product Specifications
| Cutting Direction | Neutral |
| Compatible Insert Size Code | WL25 |
| Toolholder Style | W1010 |
| Rake | Positive |
| Multi-use Tool | No |
| Lead Angle | 72.3 |
| Insert Holding Method | Screw |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Width (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Series | W1010-AUSSEN-WL25-INCH-P |
| Overall Length (mm) | 4.50 |
| Overall Length (Decimal Inch) | 4.5000 |
| Cutting Tool Application | Copying |
| Head Length (Decimal Inch) | 1.3190 |
| Back of Bar to Cutting Edge (Inch) | 3/8 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3750 |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Width (Decimal Inch) | 0.9840 |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1874 |
