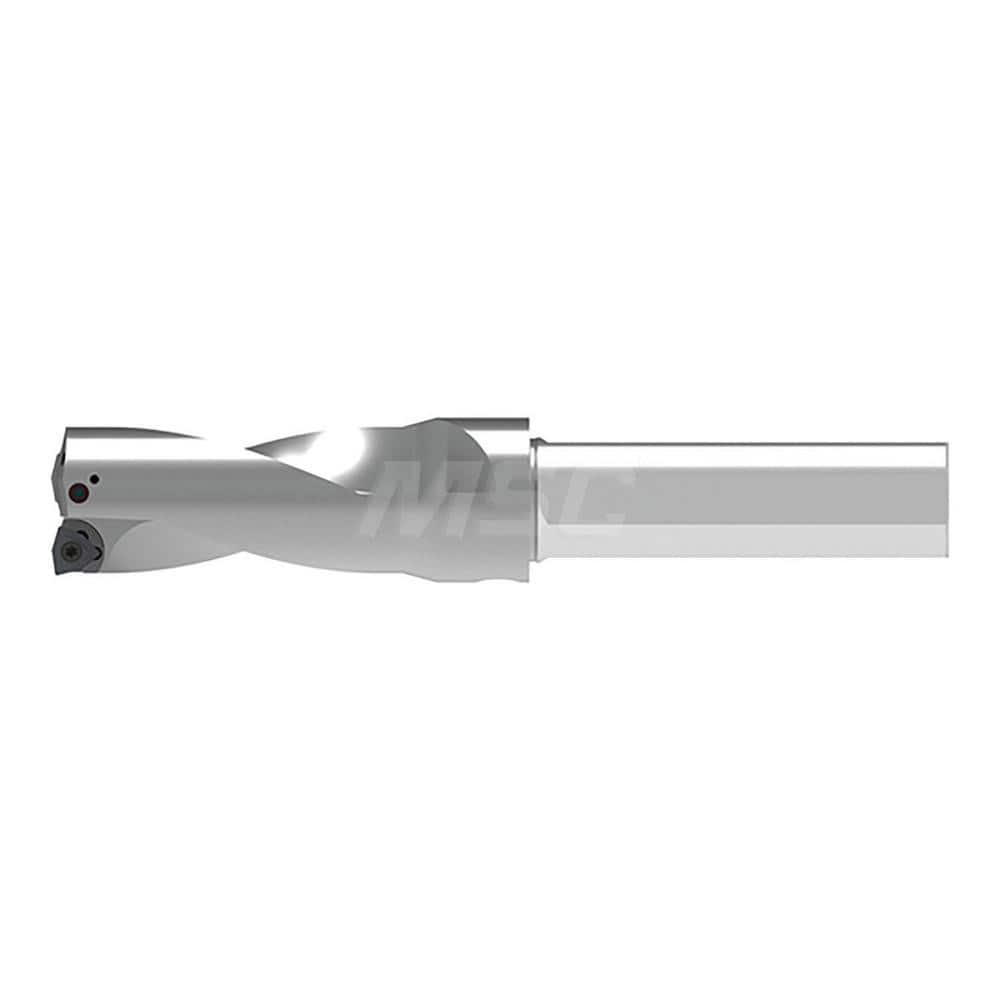

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 2.0000; Drill Diameter (Inch): 2; Maximum Drill Depth (Decimal Inch): 5.0000; Shank Type: Weldon; Shank Diameter (Inch): 1-1/2; Drill Diameter Range (Decimal Inch): 2.0000 to 3.000
Item #: 11639358
Brand: Komet
Model #: 1589650802
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 2.0000 |
| Drill Diameter (Inch) | 2 |
| Maximum Drill Depth (Decimal Inch) | 5.0000 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Drill Diameter Range (Decimal Inch) | 2.0000 to 3.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 2.5xD |
| Series | 15896 |
| Flute Length (Decimal Inch) | 5.0000 |
| Body Length (Decimal Inch) | 6.8900 |
| Shank Length (Decimal Inch) | 5.0000 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Extension From Holder (Inch) | 6.8900 |
| Coolant Through | Yes |
