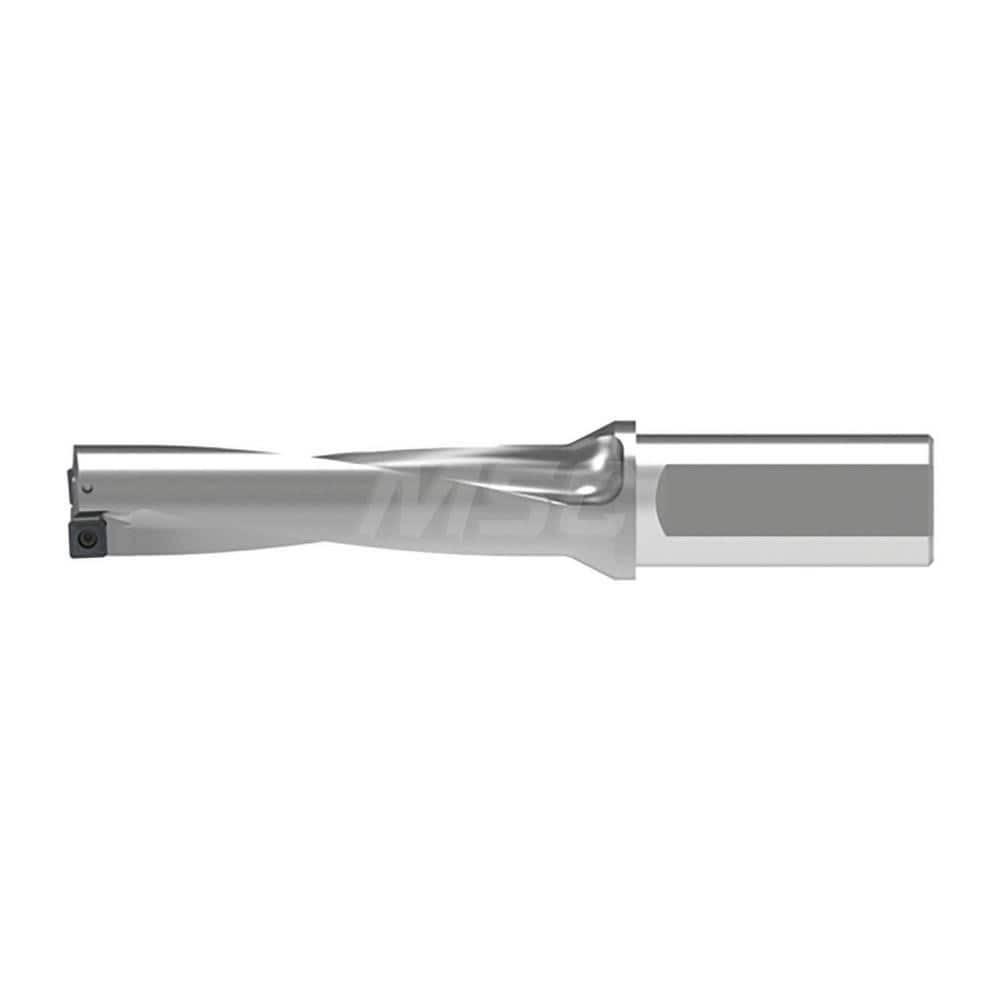

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.1870; Drill Diameter (Inch): 1-3/16; Maximum Drill Depth (Decimal Inch): 4.8820; Shank Type: Weldon; Shank Diameter (Inch): 1-1/2; Drill Diameter Range (Decimal Inch): 1.0000 to
Item #: 11637980
Brand: Komet
Model #: 1587430102
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.1870 |
| Drill Diameter (Inch) | 1-3/16 |
| Maximum Drill Depth (Decimal Inch) | 4.8820 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/2 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 4.0000 to 5.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15874 |
| Flute Length (Decimal Inch) | 4.8820 |
| Body Length (Decimal Inch) | 5.8270 |
| Shank Length (Decimal Inch) | 3.7500 |
| Overall Length/Projection (Decimal Inch) | 9.5770 |
| Collar Diameter (Decimal Inch) | 1.9700 |
| Extension From Holder (Inch) | 5.8270 |
| Coolant Through | Yes |
