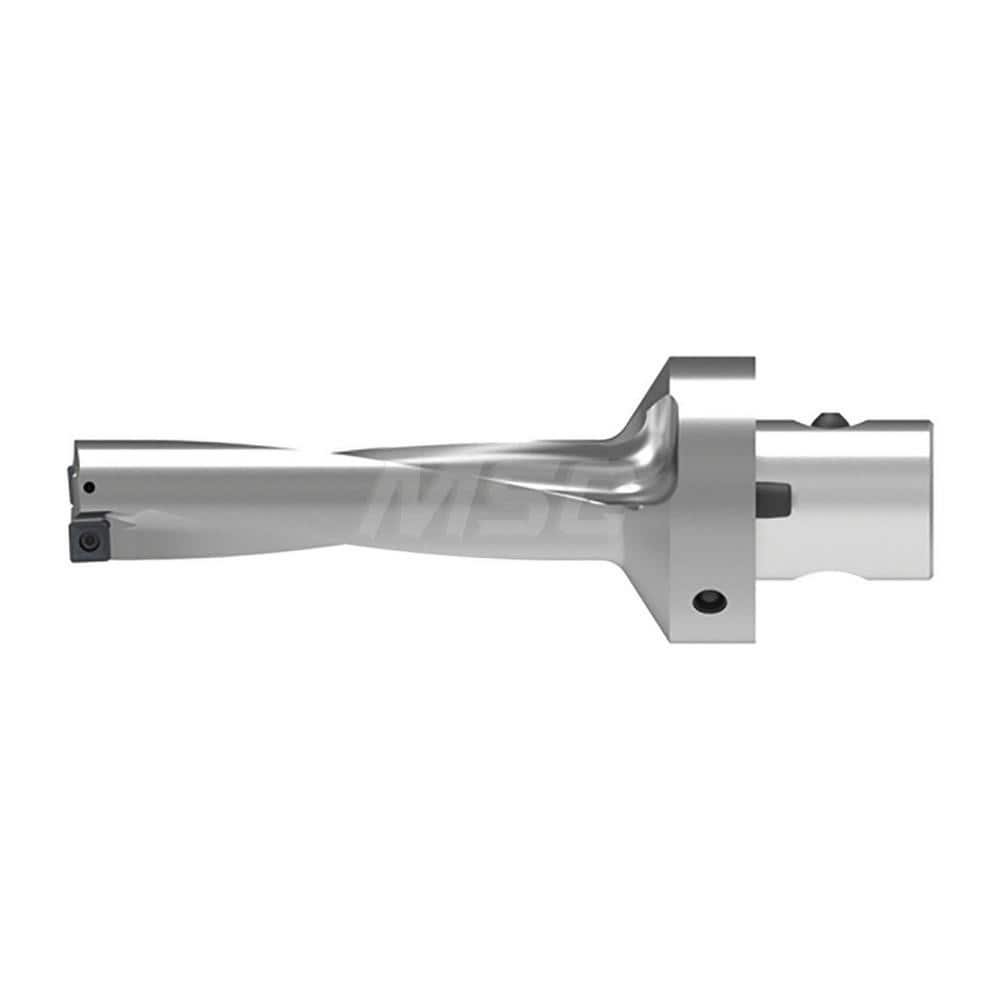

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 1.2598; Drill Diameter (mm): 32.00; Maximum Drill Depth (mm): 128.00; Shank Type: Modular Connection; Shank Diameter (mm): 34.00; Drill Diameter Range (Decimal Inch): 1.0000 to 1.3
Item #: 11637642
Brand: Komet
Model #: 1087432096
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 1.2598 |
| Drill Diameter (mm) | 32.00 |
| Maximum Drill Depth (mm) | 128.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 34.00 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 10874 |
| Flute Length (mm) | 128.00 |
| Body Length | 167.00 |
| Shank Length (mm) | 38.00 |
| Modular Connection Size | ABS 63 |
| Overall Length/Projection (mm) | 205.00 |
| Collar Diameter (mm) | 63.00 |
| Coolant Through | Yes |
