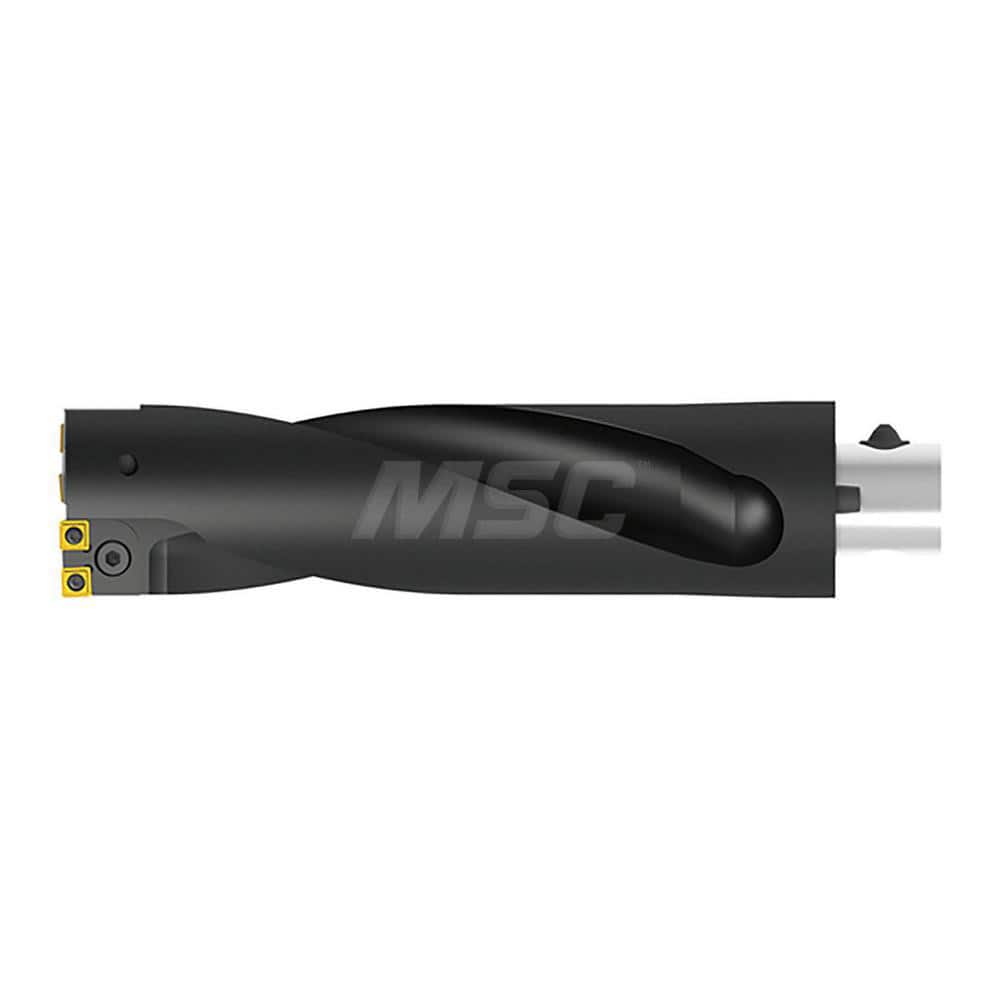

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 3.3858; Drill Diameter (mm): 86.00; Maximum Drill Depth (mm): 261.00; Shank Type: Modular Connection; Shank Diameter (mm): 56.00; Drill Diameter Range (Decimal Inch): 3.0000+; Cutt
Item #: 11637493
Brand: Komet
Model #: 1087685091
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 3.3858 |
| Drill Diameter (mm) | 86.00 |
| Maximum Drill Depth (mm) | 261.00 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 56.00 |
| Drill Diameter Range (Decimal Inch) | 3.0000+ |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 200.00+ |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 10876 |
| Flute Length (mm) | 261.00 |
| Body Length | 342.00 |
| Shank Length (mm) | 55.00 |
| Modular Connection Size | ABS100 |
| Overall Length/Projection (mm) | 397.00 |
| Collar Diameter (mm) | 100.00 |
| Coolant Through | Yes |
