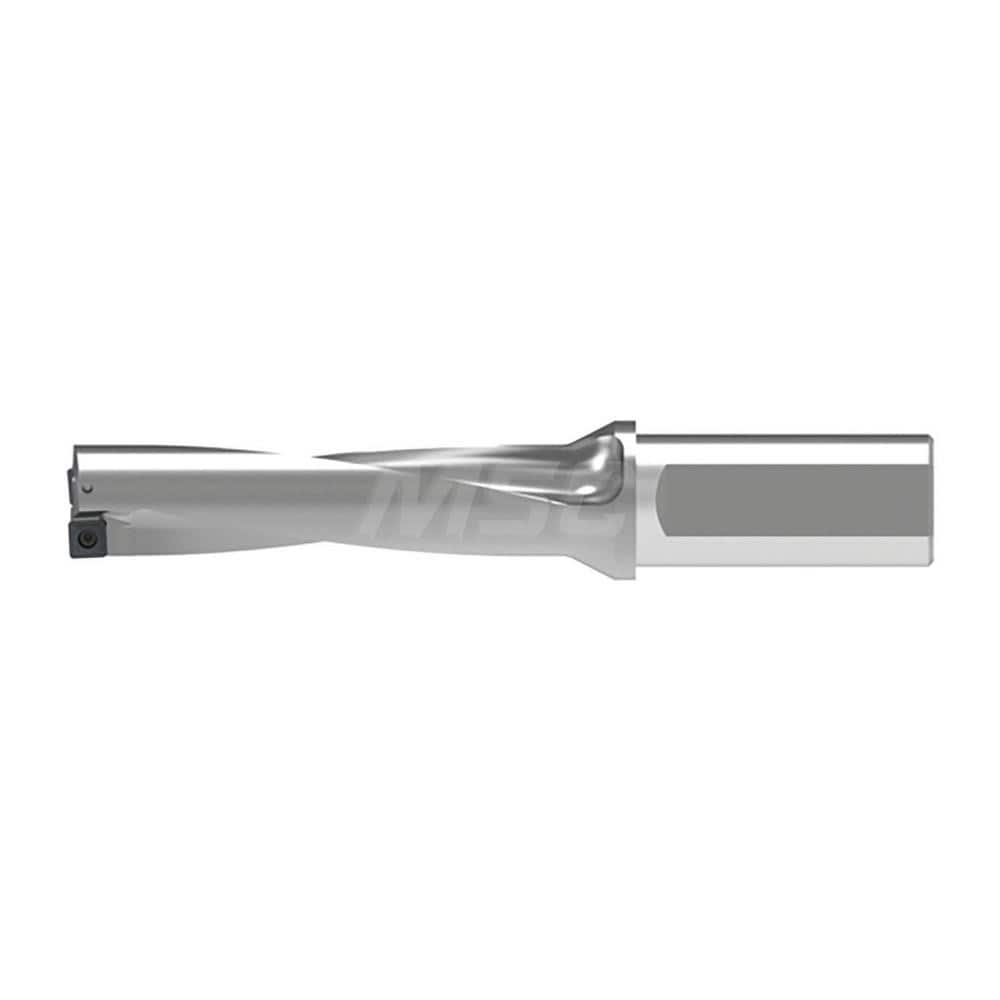

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.7874; Drill Diameter (mm): 20.00; Maximum Drill Depth (mm): 80.00; Shank Type: Weldon; Shank Diameter (mm): 25.00; Drill Diameter Range (Decimal Inch): 0.7500 to 1.0000; Cutting
Item #: 11635380
Brand: Komet
Model #: 1087420002
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Drill Diameter (mm) | 20.00 |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.00 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 75.00 to 100.00 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 10874 |
| Flute Length (mm) | 80.00 |
| Body Length | 98.00 |
| Shank Length (mm) | 56.00 |
| Overall Length/Projection (mm) | 154.00 |
| Collar Diameter (mm) | 30.00 |
| Coolant Through | Yes |
