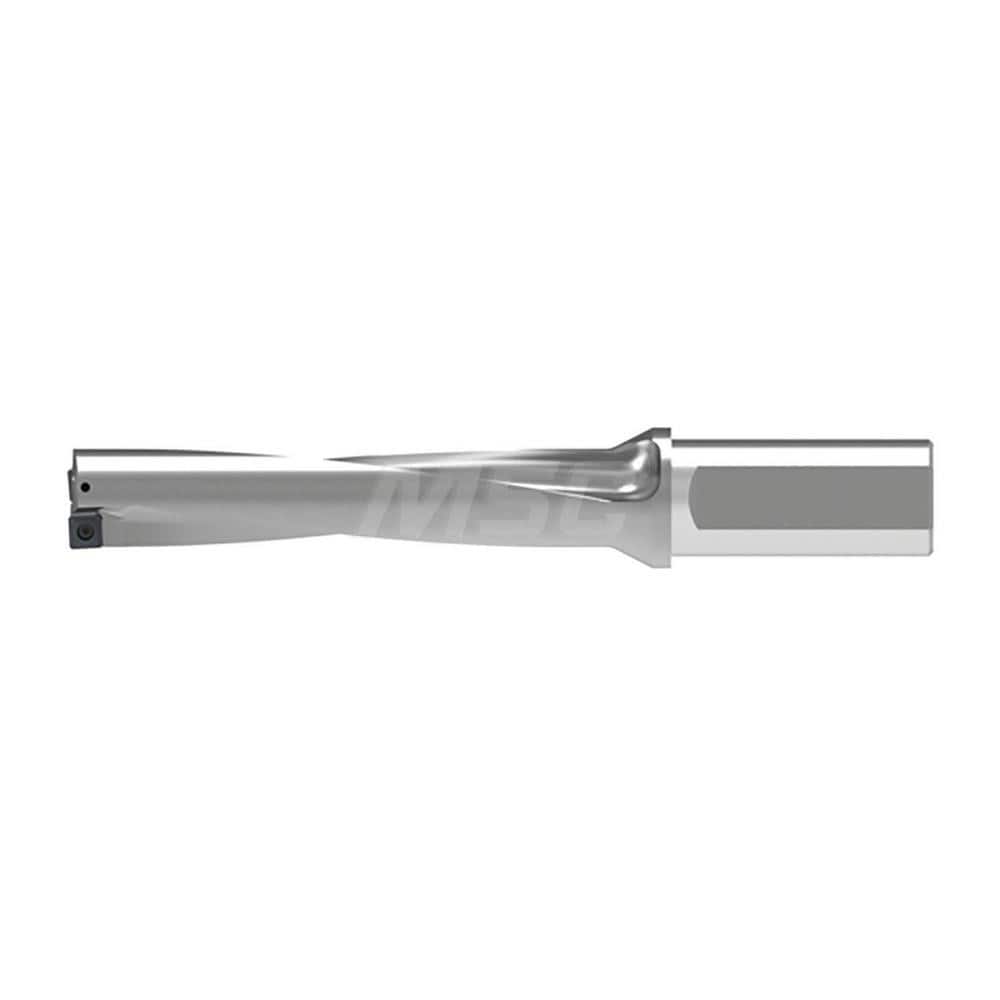

Indexable Insert Drills; Drill Style: KUBP; Drill Diameter (Decimal Inch): 0.5930; Drill Diameter (Inch): 19/32; Maximum Drill Depth (Decimal Inch): 3.1500; Shank Type: Weldon; Shank Diameter (Inch): 3/4; Drill Diameter Range (Decimal Inch): 0.0000 to 0.7
Item #: 11634367
Brand: Komet
Model #: 1587515109
Product Specifications
| Drill Style | KUBP |
| Drill Diameter (Decimal Inch) | 0.5930 |
| Drill Diameter (Inch) | 19/32 |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOGX |
| Drill Depth by Diameter Ratio | 5xD |
| Series | 15875 |
| Flute Length (Decimal Inch) | 3.1500 |
| Body Length (Decimal Inch) | 3.7800 |
| Shank Length (Decimal Inch) | 2.2500 |
| Overall Length/Projection (Decimal Inch) | 6.0300 |
| Collar Diameter (Decimal Inch) | 1.1800 |
| Extension From Holder (Inch) | 3.7800 |
| Coolant Through | Yes |
