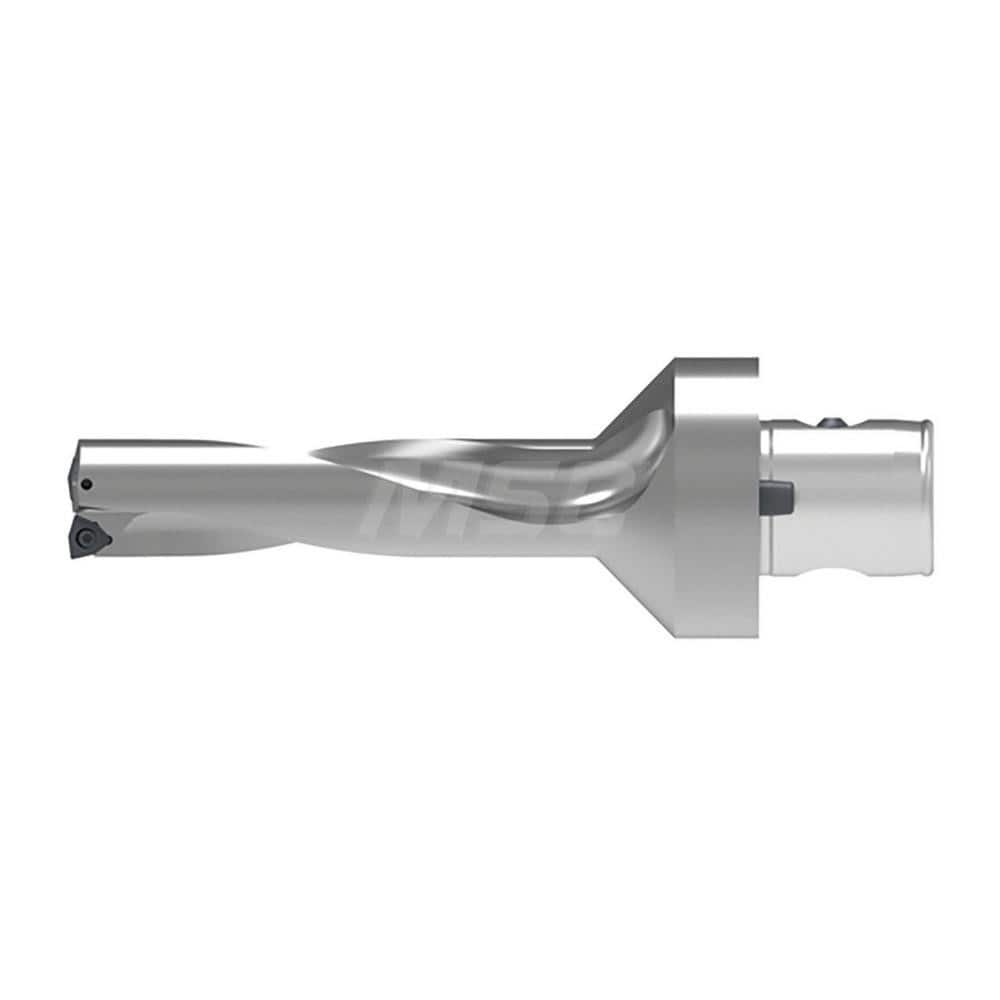

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 1.5000; Drill Diameter (Inch): 1-1/2; Maximum Drill Depth (Decimal Inch): 6.1420; Shank Type: Modular Connection; Shank Diameter (mm): 28.00; Drill Diameter Range (Decimal Inch): 1
Item #: 11633989
Brand: Komet
Model #: 1589438195
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 1.5000 |
| Drill Diameter (Inch) | 1-1/2 |
| Maximum Drill Depth (Decimal Inch) | 6.1420 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 28.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 4xD |
| Series | 15894 |
| Flute Length (Decimal Inch) | 6.1420 |
| Body Length (Decimal Inch) | 8.1110 |
| Shank Length (Decimal Inch) | 1.2200 |
| Modular Connection Size | ABS 50 |
| Overall Length/Projection (Decimal Inch) | 9.3310 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Extension From Holder (Inch) | 8.1110 |
| Coolant Through | Yes |
