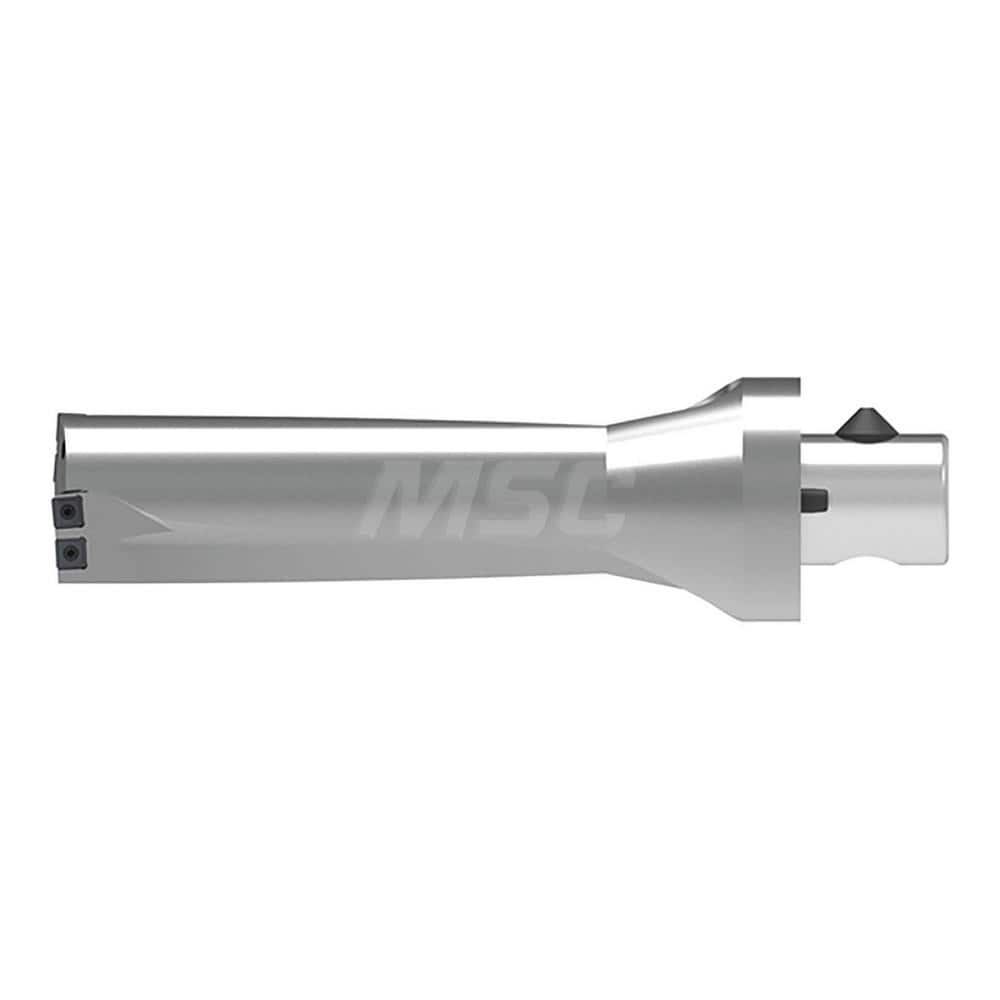

Indexable Insert Drills; Drill Style: KUBQ; Drill Diameter (Decimal Inch): 2.0620; Drill Diameter (Inch): 2-1/16; Maximum Drill Depth (Decimal Inch): 6.2600; Shank Type: Modular Connection; Shank Diameter (mm): 34.00; Drill Diameter Range (Decimal Inch):
Item #: 11630688
Brand: Komet
Model #: 1588052496
Product Specifications
| Drill Style | KUBQ |
| Drill Diameter (Decimal Inch) | 2.0620 |
| Drill Diameter (Inch) | 2-1/16 |
| Maximum Drill Depth (Decimal Inch) | 6.2600 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 34.00 |
| Drill Diameter Range (Decimal Inch) | 2.0000 to 3.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SOEX |
| Drill Depth by Diameter Ratio | 3xD |
| Series | 15880 |
| Flute Length (Decimal Inch) | 6.2600 |
| Body Length (Decimal Inch) | 8.4250 |
| Shank Length (Decimal Inch) | 1.4960 |
| Modular Connection Size | ABS 63 |
| Overall Length/Projection (Decimal Inch) | 9.9210 |
| Collar Diameter (Decimal Inch) | 2.4800 |
| Extension From Holder (Inch) | 8.4250 |
| Coolant Through | Yes |
