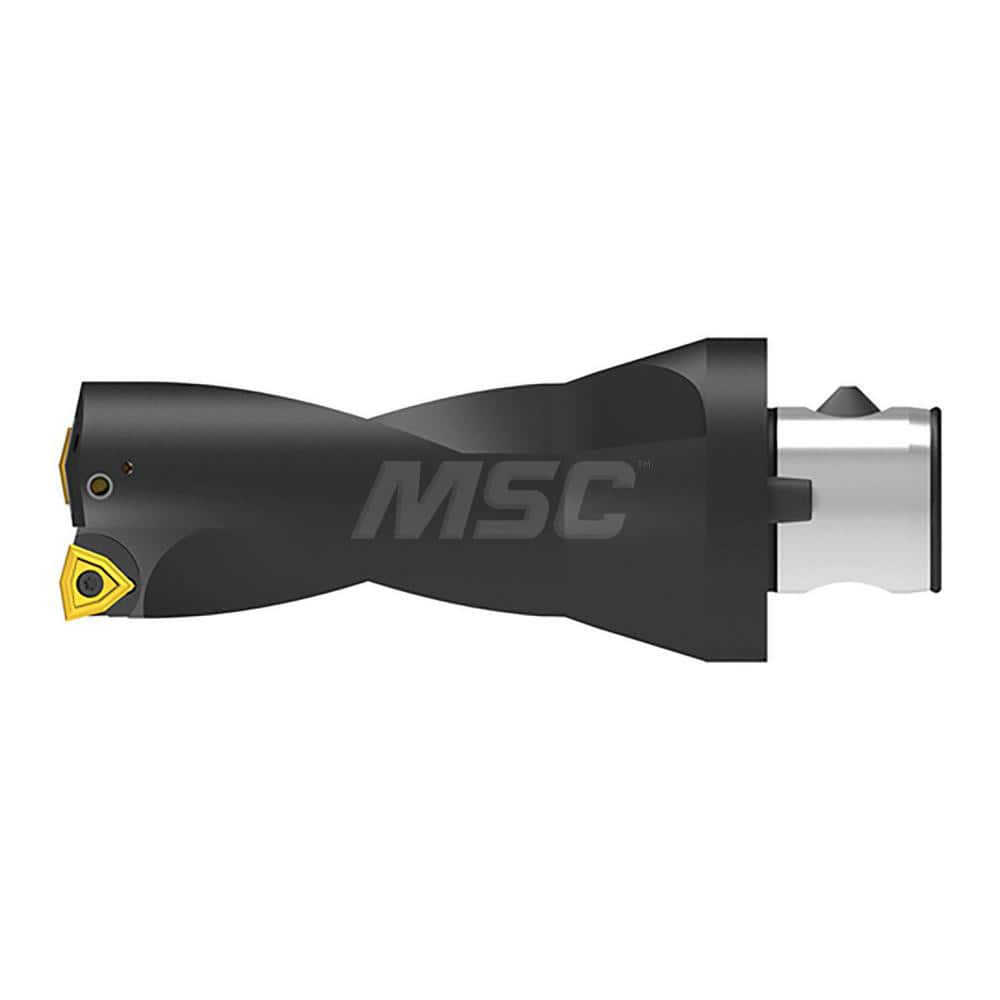

Indexable Insert Drills; Drill Style: KUBT; Drill Diameter (Decimal Inch): 1.9370; Drill Diameter (Inch): 1-15/16; Maximum Drill Depth (Decimal Inch): 3.8740; Shank Type: Modular Connection; Shank Diameter (mm): 34.00; Drill Diameter Range (Decimal Inch):
Item #: 11630340
Brand: Komet
Model #: 1589249296
Product Specifications
| Drill Style | KUBT |
| Drill Diameter (Decimal Inch) | 1.9370 |
| Drill Diameter (Inch) | 1-15/16 |
| Maximum Drill Depth (Decimal Inch) | 3.8740 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 34.00 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Compatible Insert Style | WOEX |
| Drill Depth by Diameter Ratio | 2xD |
| Series | 15892 |
| Flute Length (Decimal Inch) | 3.8740 |
| Body Length (Decimal Inch) | 6.0400 |
| Shank Length (Decimal Inch) | 1.4960 |
| Modular Connection Size | ABS 63 |
| Overall Length/Projection (Decimal Inch) | 7.5360 |
| Collar Diameter (Decimal Inch) | 2.4800 |
| Extension From Holder (Inch) | 6.0400 |
| Coolant Through | Yes |
